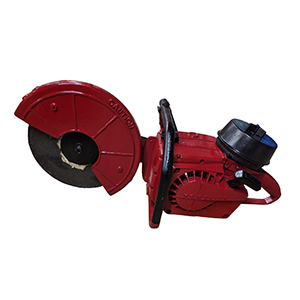

Homelite XL98E-(UT-05060) Replacement Parts

Model: XL98E-(UT-05060)

Brand: Homelite

Download Schematics

Buy Homelite XL98E-(UT-05060) Chain Saw Parts

Other tools in Homelite Chain Saw Parts category

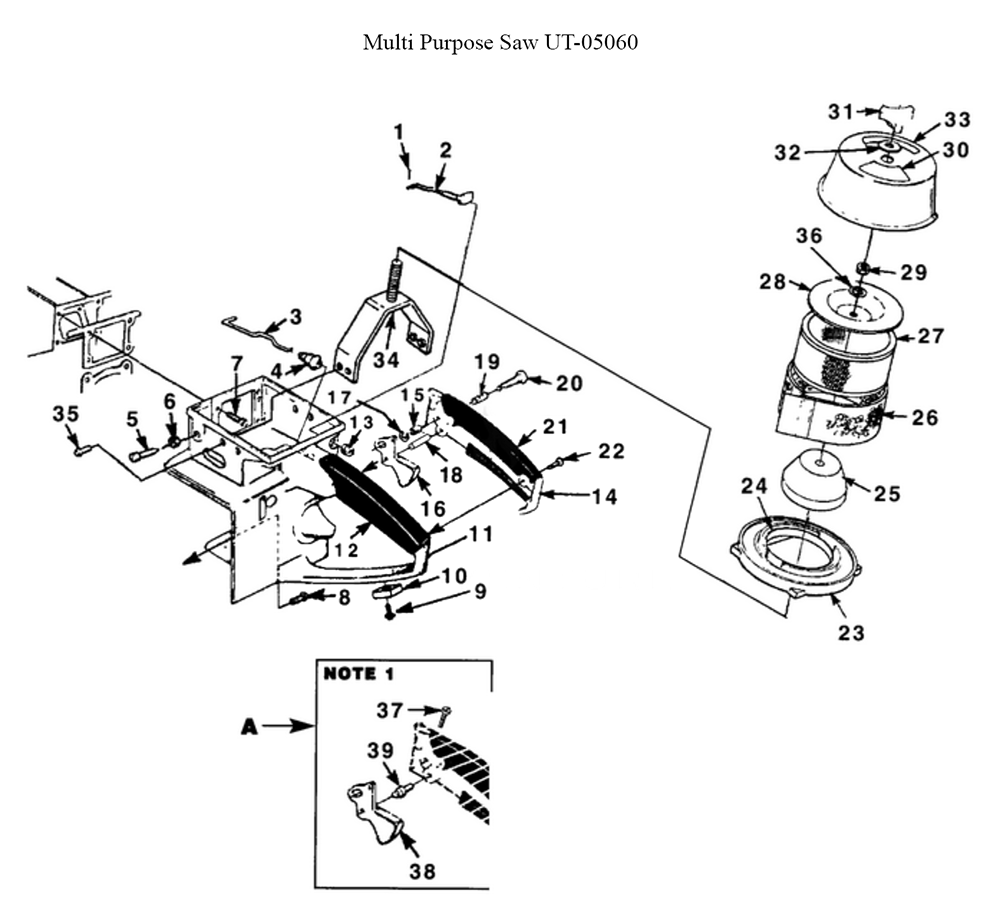

Fig-0

Page-1

Fig-0

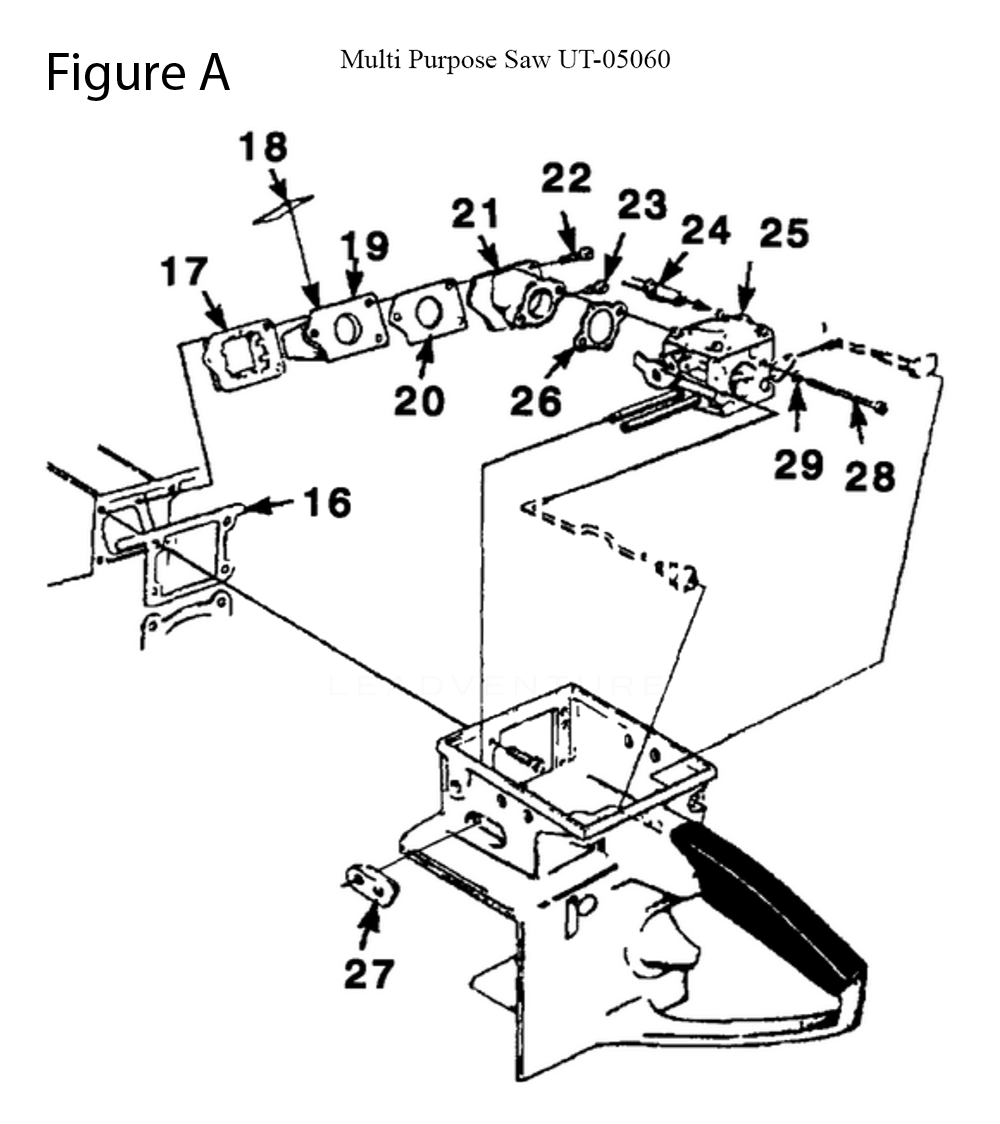

XL98E-(UT-05060)-homelite-PB-1Break Down

Fig-1

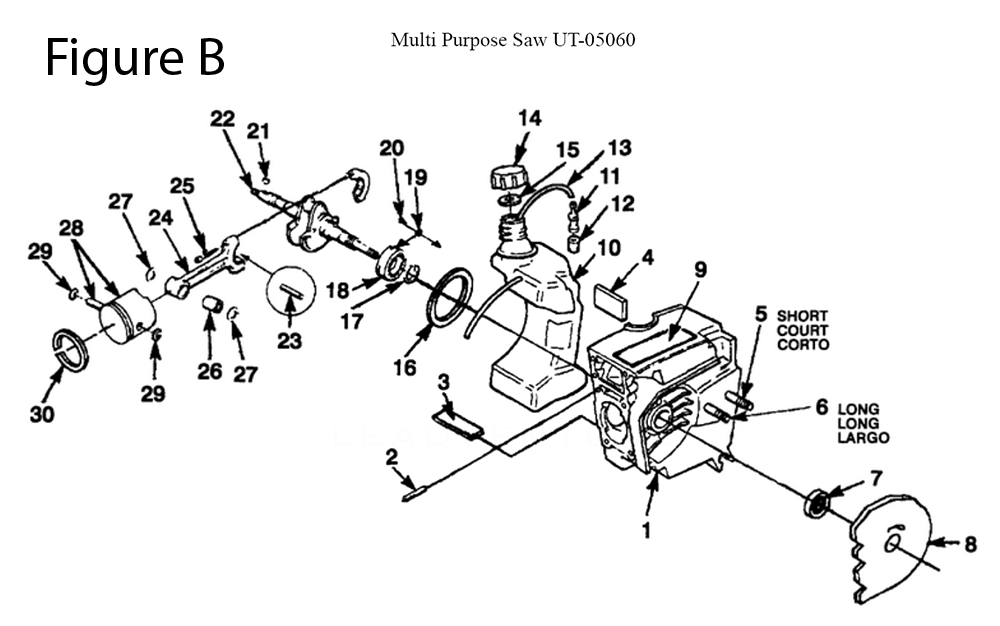

XL98E-(UT-05060)-homelite-PB-2Break Down

Fig-2

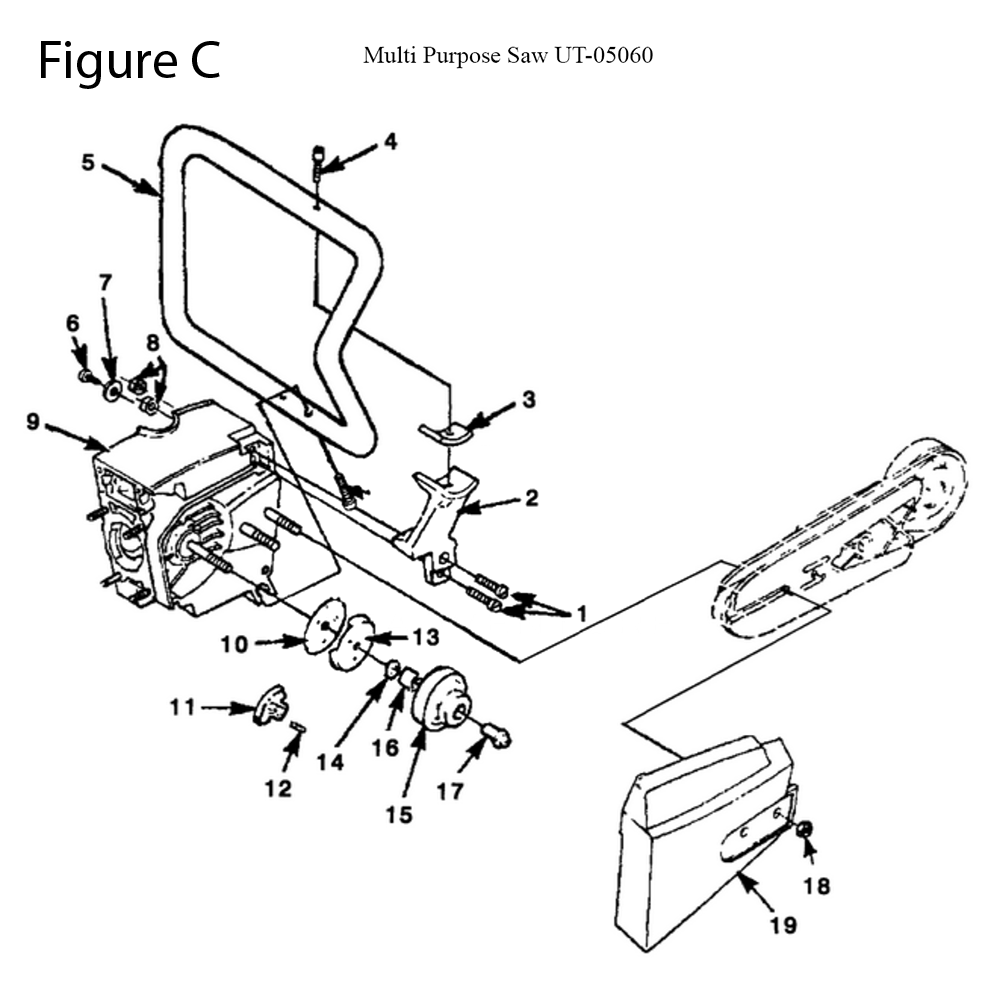

XL98E-(UT-05060)-homelite-PB-3Break Down

Fig-3

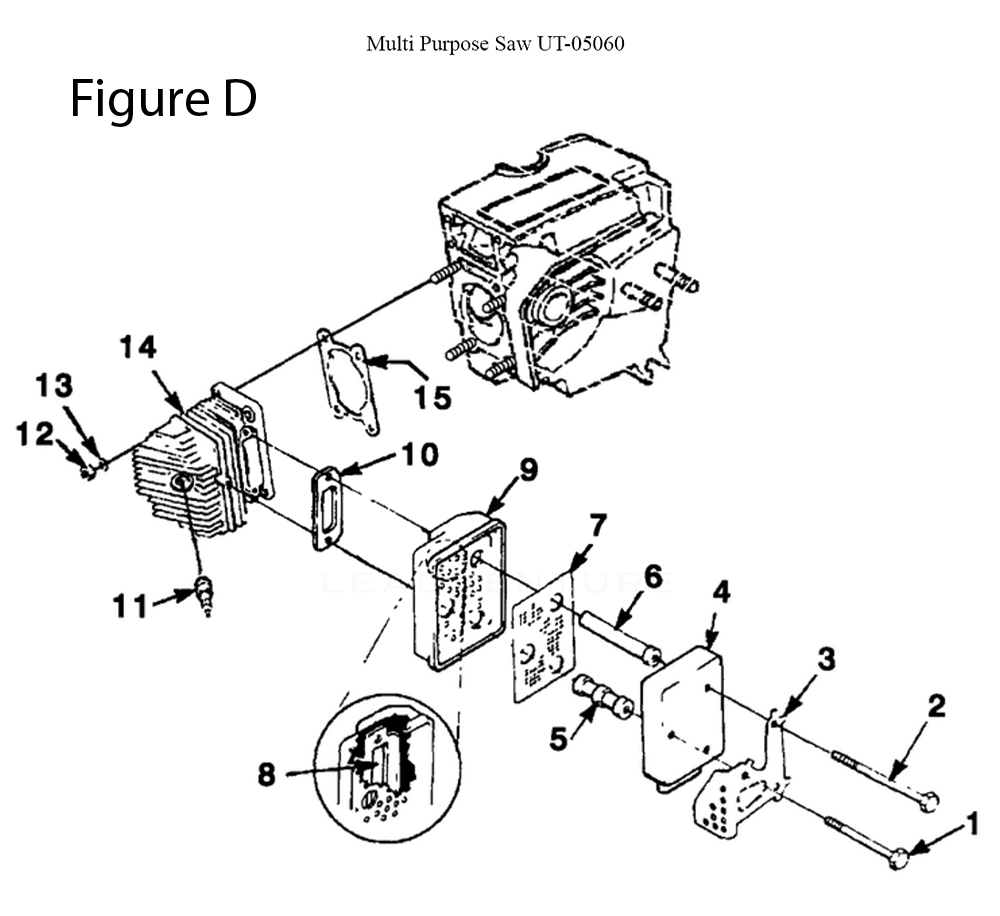

XL98E-(UT-05060)-homelite-PB-4Break Down

Fig-4

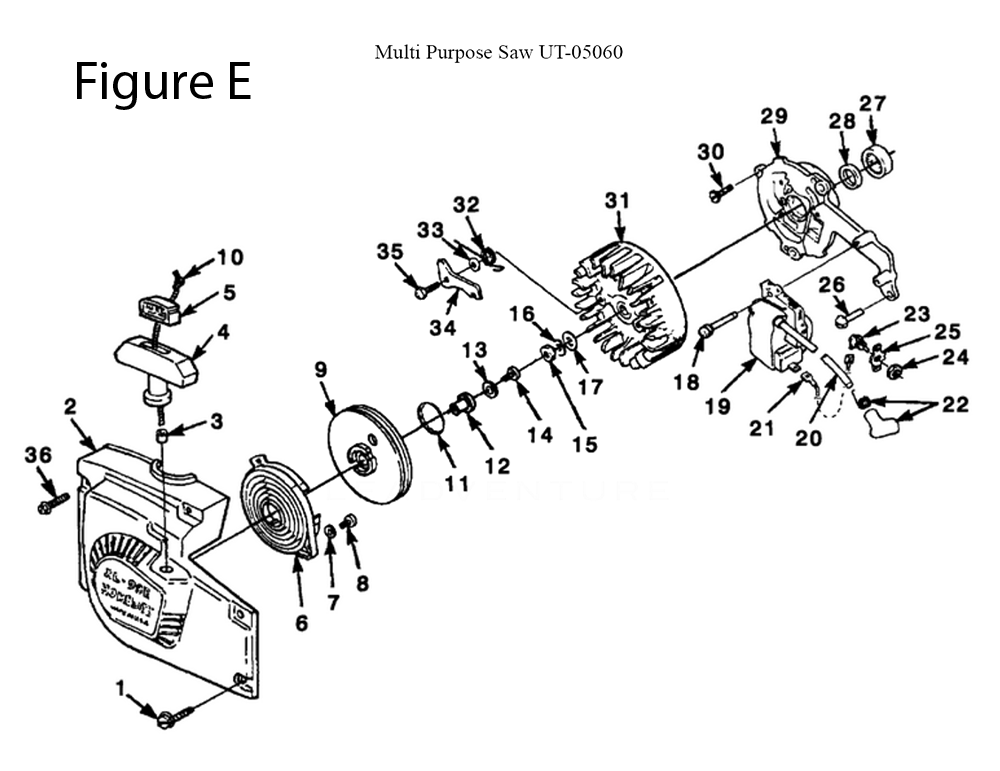

XL98E-(UT-05060)-homelite-PB-5Break Down

Fig-5

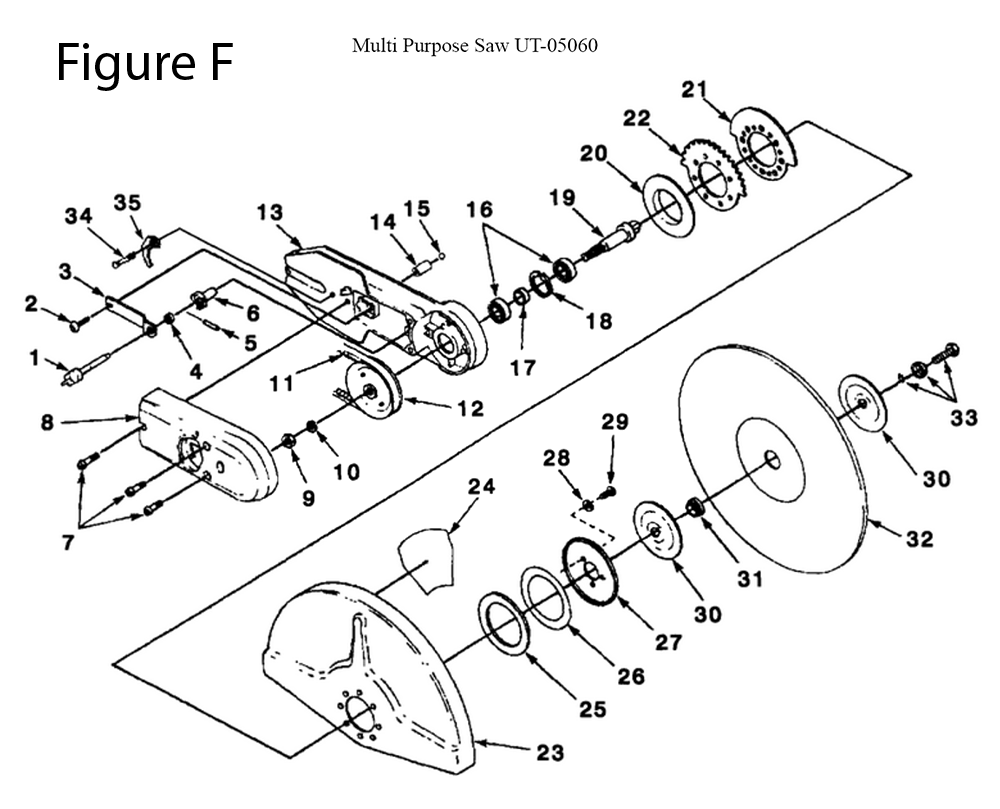

XL98E-(UT-05060)-homelite-PB-6Break Down

Fig-6

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

Homelite XL98E-(UT-05060) Replacement Parts List

00

AIR FILTER KIT Part # A49556C Currently not available

N/A
1

PIN - Cotter Part # 86324 Currently not available

N/A
2

CHOKE ROD Part # 672011 Currently not available

N/A
3

ROD-Throttle Part # 63266A Currently not available

N/A
4

BOOT-Throttle rod Part # 58348 Currently not available

N/A
5

SCREW-Idle Adjustment Part # 63369A Currently not available

N/A
6

NUT-Jam (5/16-24) Part # 81117 Currently not available

N/A
7

SCREW-Hex hd. 12-24 x 5/8 Part # 80676 Currently not available

N/A
8

SCREW - Hex hd (12-24 X 7/8") Part # 80891 Currently not available

N/A
9

SCREW- Hex hd. (10-24 x 1/2") Part # 88049 Currently not available

N/A
10

PAD- Wear Part # 496861 Currently not available

N/A
11

HANDLE- Throttle Part # A01845 Currently not available

N/A
12

GRIP - Throttle Handle Part # 68767 Currently not available

N/A
13

GROMMET Choke Part # 64862 Currently not available

N/A
14

COVER - Throttle Handle Part # A69045A Currently not available

N/A
15

BUSHING Part # 59064 Currently not available

N/A
16

TRIGGER Part # 58859A Currently not available

N/A
17

RING-Retaining Part # 58409 Currently not available

N/A
18

PIN- Trigger Part # 68548 Currently not available

N/A
19

SPRING Part # 58405 Currently not available

N/A
20

PIN- Throttle lock Part # 95671 Currently not available

N/A
21

GRIP-Throttle handle cover Part # 68768 Currently not available

N/A
22

SCREW-Pan hd. #8-32 x 1/2 Part # 80560 Currently not available

N/A
23

RING & GASKET ASSY. Part # A50952B Currently not available

N/A
24

GASKET Part # 50951 Currently not available

N/A
