Homelite UTi2100S Replacement Parts

Model: UTi2100S

Brand: Homelite

Download Schematics

Buy Homelite UTi2100S Pressure Washer Parts

Other tools in Homelite Pressure Washer Parts category

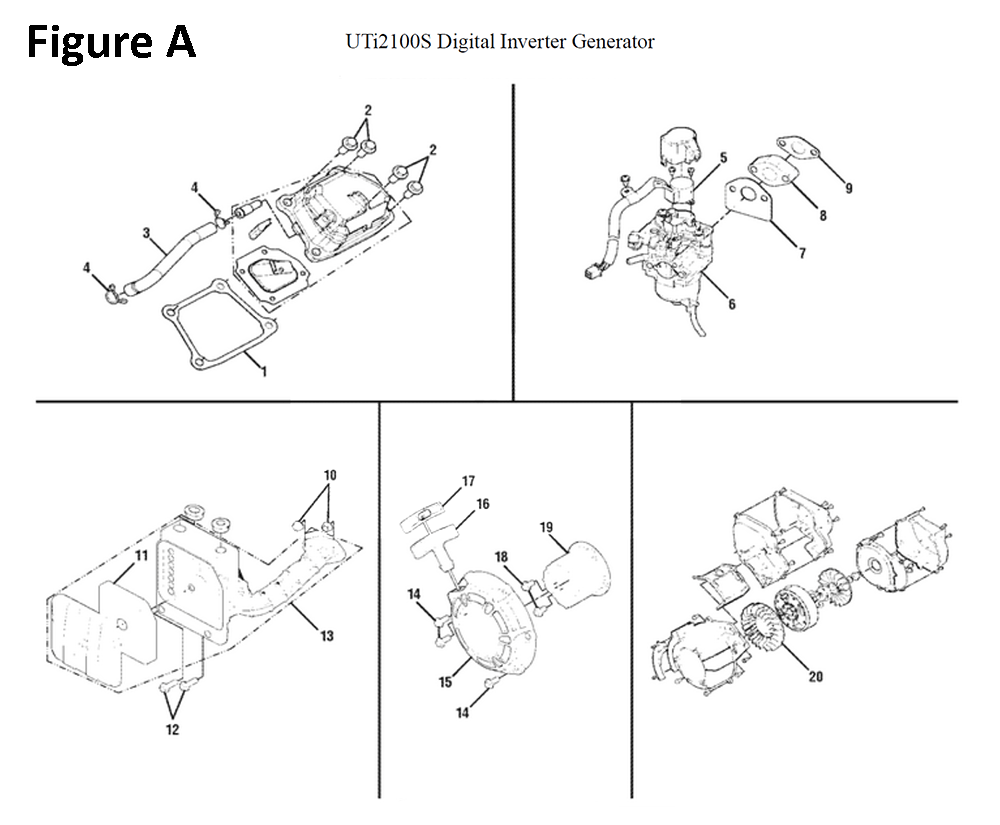

Fig-0

Page-1

Fig-0

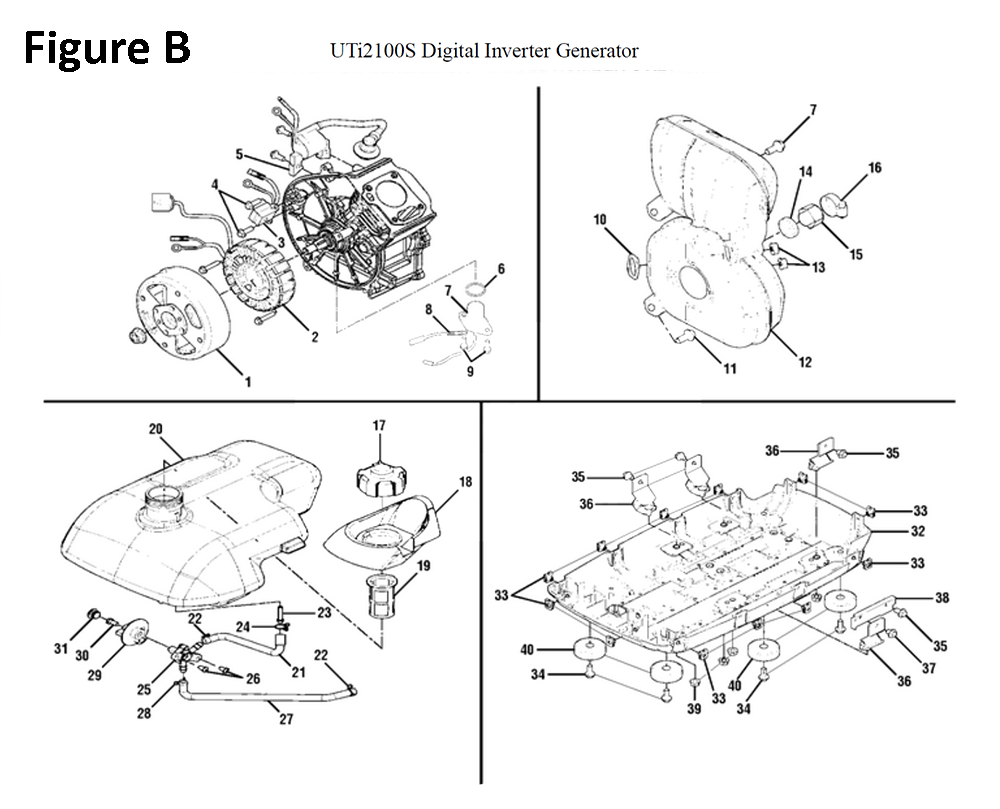

UTi2100S-homelite-PB-1Break Down

Fig-1

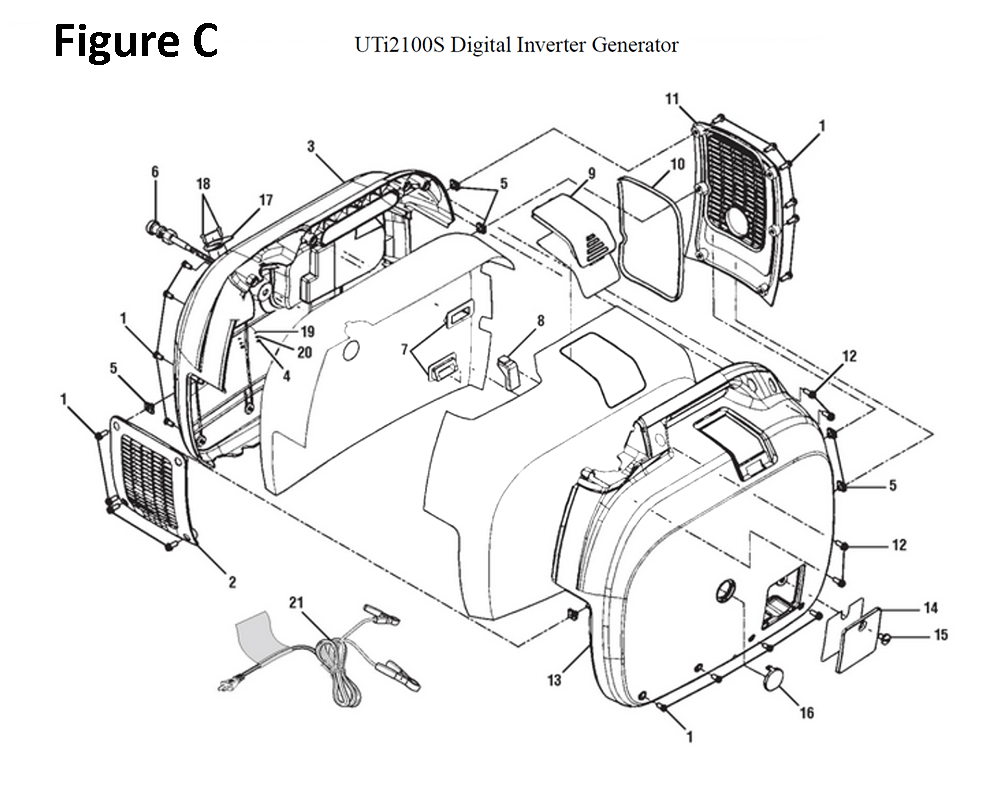

UTi2100S-homelite-PB-2Break Down

Fig-2

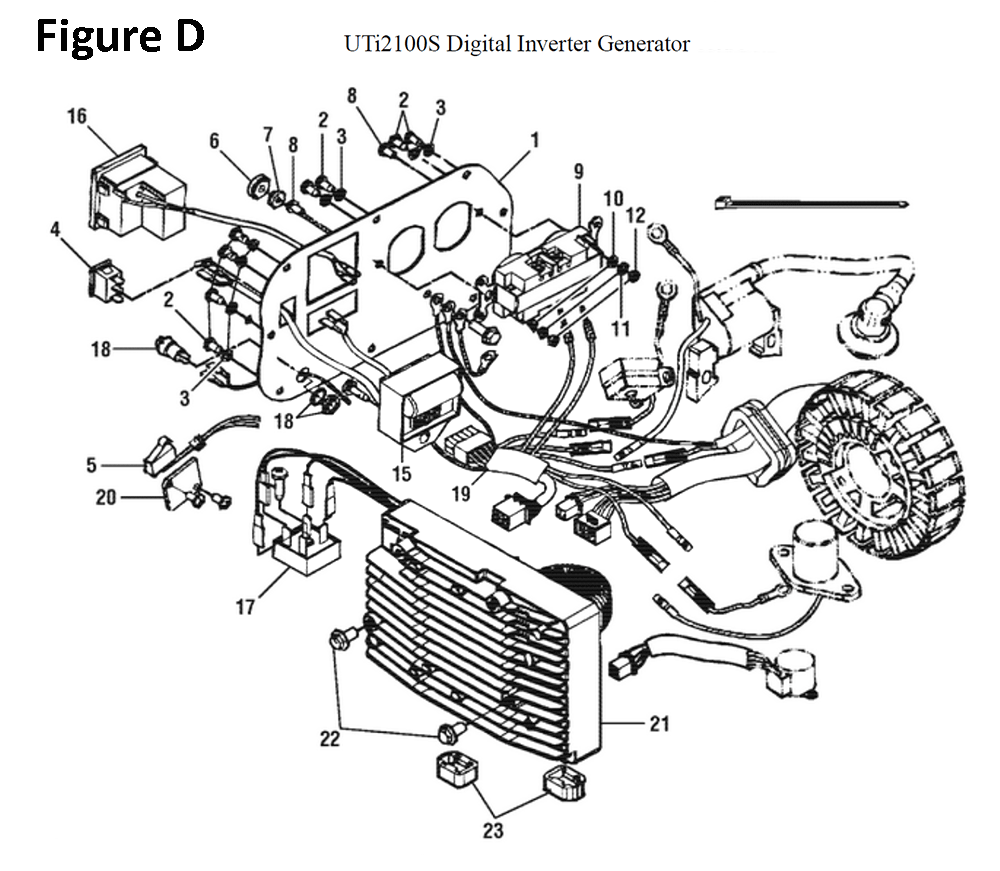

UTi2100S-homelite-PB-3Break Down

Fig-3

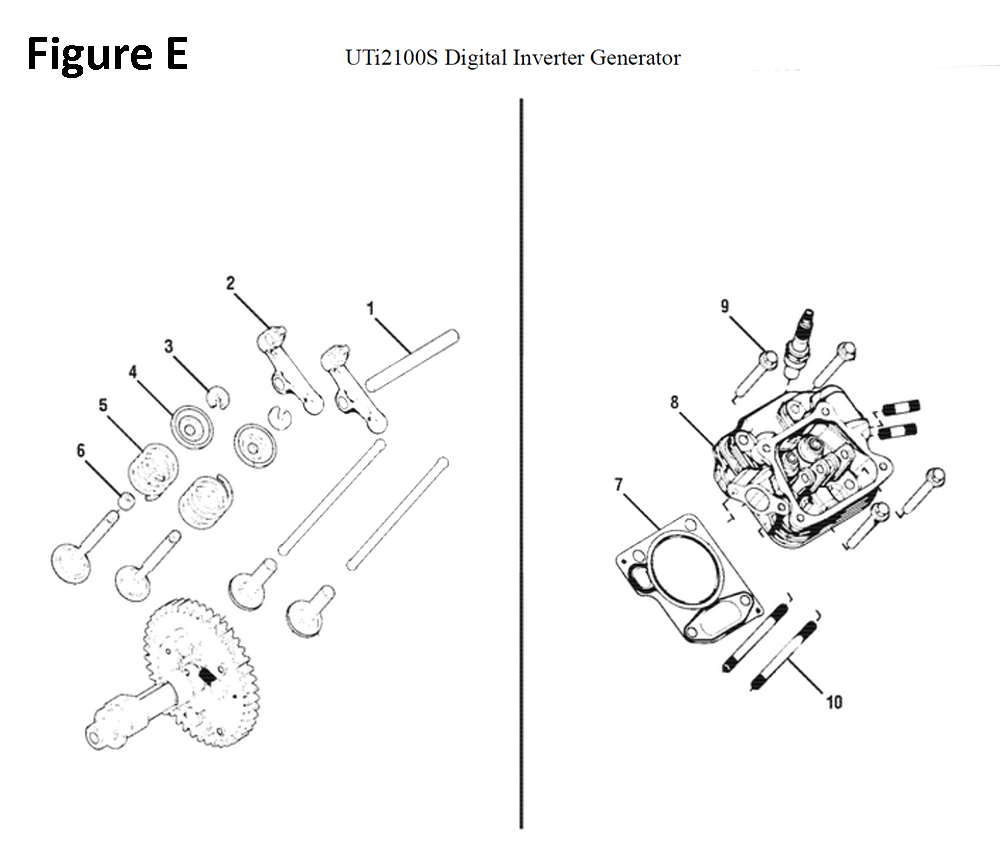

UTi2100S-homelite-PB-4Break Down

Fig-4

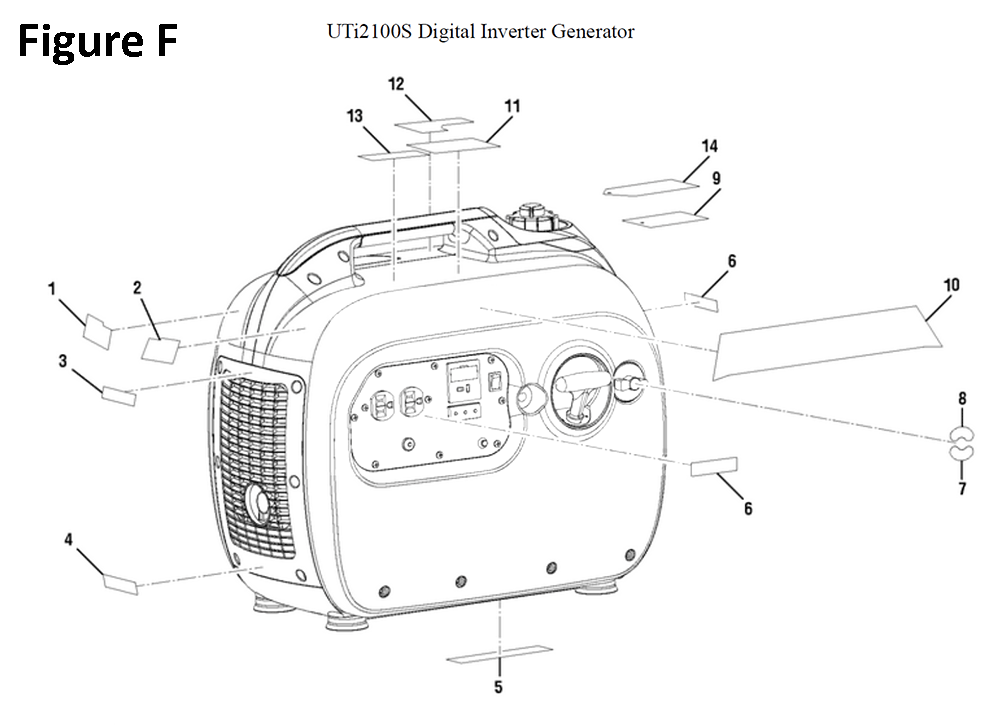

UTi2100S-homelite-PB-5Break Down

Fig-5

UTi2100S-homelite-PB-6Break Down

Fig-6

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

Homelite UTi2100S Replacement Parts List

A-00

High Altitude Kit (6000-9000ft) (Not Included) Part # 120968008 Currently not available

N/A
A-00

High Altitude Kit (2000-6000ft) (Not Included) Part # 120968007 Currently not available

N/A
A-00

Quick Start Guide Part # 991000032 Currently not available

N/A
A-00

Operator's Manual Part # 991000031 Currently not available

N/A
A-1

Cylinder Head Cover Gasket Part # LH148F-014003 Currently not available

N/A
A-10

FLANGE NUT M6 Part # GB/T6177.1-2000M6 Currently not available

N/A
A-11

Air Filter Element Part # LH148F-100001 Currently not available

N/A
A-12

Bolt (M6 x 12 mm, Flange Hd.) Part # GBT57891986M618 Currently not available

N/A
A-13

Air Filter Assembly Part # LH148F-101000 Currently not available

N/A
A-14

FLANGE BOLT M6X16 Part # GB/T5789-1986M6X16 Currently not available

N/A
A-15

Recoil Starter Disc Set Part # LH2000I-331000 Currently not available

N/A
A-16

Recoil Handle Part # LH2000I-331301 Currently not available

N/A
A-17

Recoil Handle Cover Part # LH2000I-331302 Currently not available

N/A
A-18

FLANGE BOLT M6X12 Part # GB-T5789-1986M6X12 Currently not available

N/A
A-19

Recoil Starter Driving Disc Part # LH2000I-330001 Currently not available

N/A
A-2

FLANGE BOLT M6X16 Part # GB/T5789-1986M6X16 Currently not available

N/A
A-20

Front Fan Part # LH2000I-350001 Currently not available

N/A
A-3

Engine Vent Hose Part # LH148F-014004 Currently not available

N/A
A-4

Clip (M10) Part # QC/T621-1999-10 Currently not available

N/A
A-5

Stepper Motor Assembly Part # LH148F-091200 Currently not available

N/A
A-6

Carburetor Assembly Part # LH148F-091100A Currently not available

N/A
A-7

Intake Seat Gasket Part # LH148F-090001 Currently not available

N/A
A-8

Carburetor Seat Adapter Part # LH148F-090002 Currently not available

N/A
A-9

Adapter Rear Gasket Part # LH148F-090003 Currently not available

N/A
B-1

Rotor Assembly Part # LH2000I-311100 Currently not available

N/A
