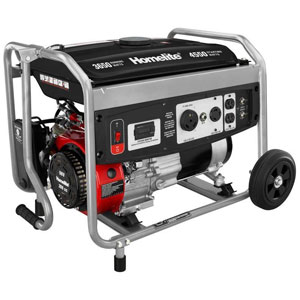

Homelite UT903655DA-(990000674) Replacement Parts

Model: UT903655DA-(990000674)

Brand: Homelite

Download Schematics

Buy Homelite UT903655DA-(990000674) Pressure Washer Parts

Other tools in Homelite Pressure Washer Parts category

Fig-0

Page-1

Fig-0

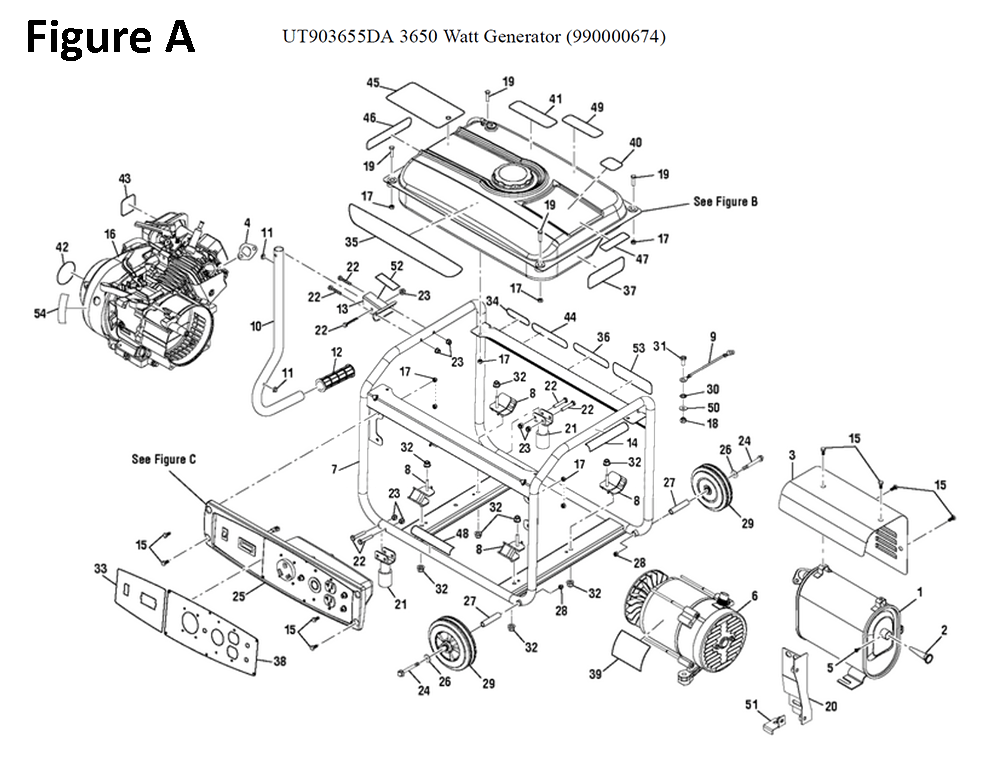

UT903655DA-(990000674)-homelite-PB-1Break Down

Fig-1

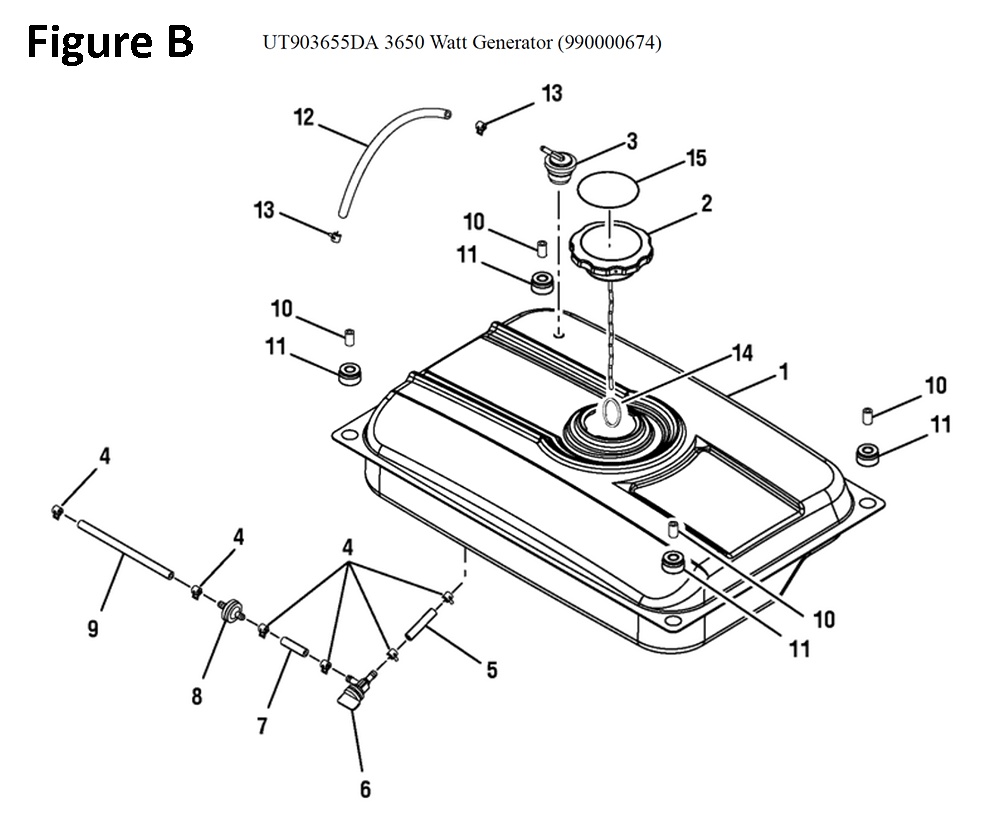

UT903655DA-(990000674)-homelite-PB-2Break Down

Fig-2

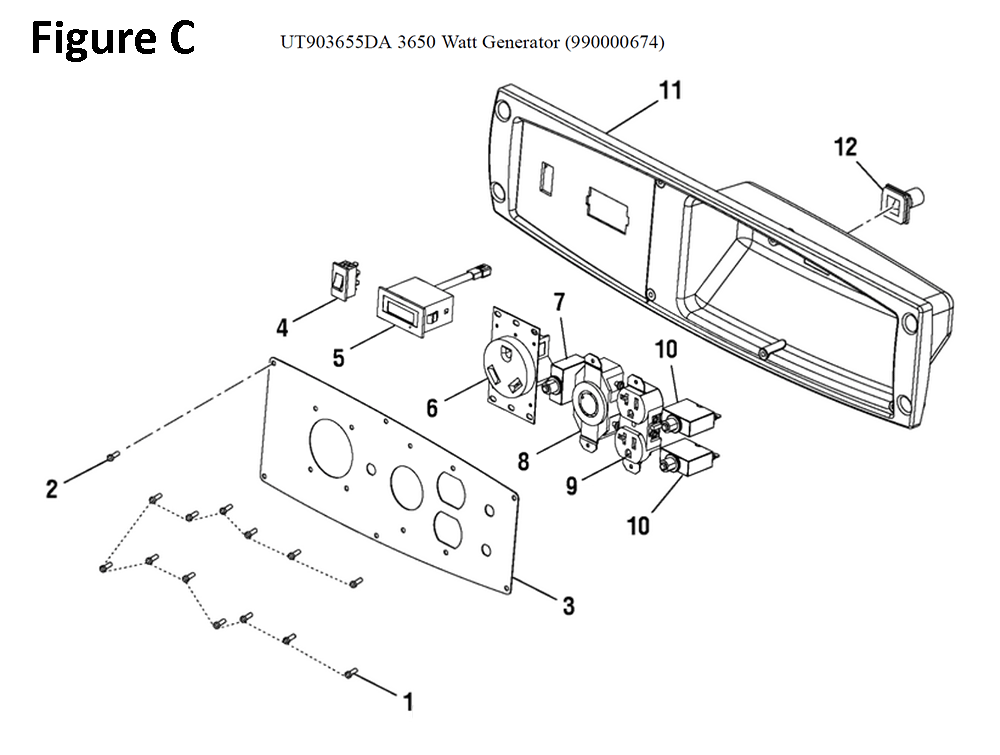

UT903655DA-(990000674)-homelite-PB-3Break Down

Fig-3

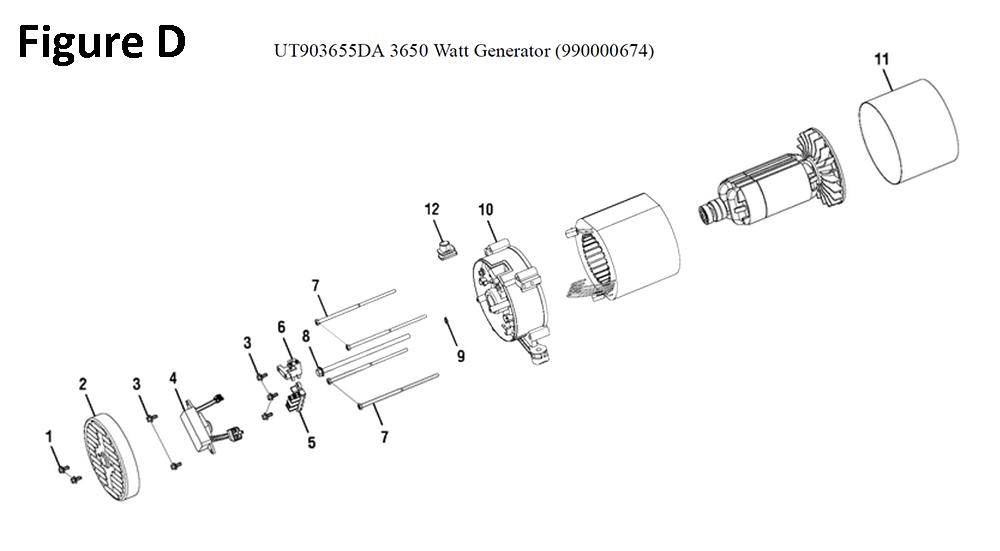

UT903655DA-(990000674)-homelite-PB-4Break Down

Fig-4

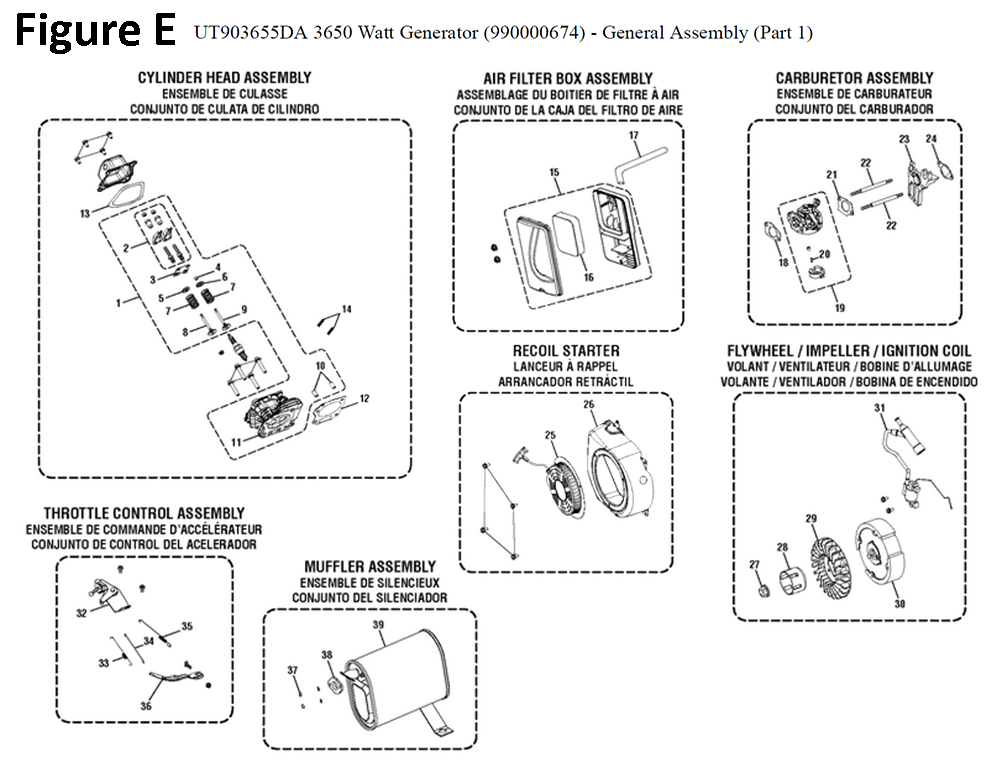

UT903655DA-(990000674)-homelite-PB-5Break Down

Fig-5

UT903655DA-(990000674)-homelite-PB-6Break Down

Fig-6

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

Homelite UT903655DA-(990000674) Replacement Parts List

A-00

Operator's Manual Part # 990000672 Currently not available

N/A
A-1

Muffler Part # 309322025 Currently not available

N/A
A-10

Handle Assembly Part # 310224057 Currently not available

N/A
A-11

Handle Bumper Part # 570371008 Currently not available

N/A
A-12

Handle Grip Part # 570371007 Currently not available

N/A
A-13

Handle Bracket Part # 638702025 Currently not available

N/A
A-14

Fire Distance Label Part # 940974089 Currently not available

N/A
A-15

Screw (M6 x 14 mm) Part # 660481005 Currently not available

N/A
A-17

Lock Nut (M6) Part # 411071001 Currently not available

N/A
A-18

Lock Nut (5/16-18) Part # 678259003 Currently not available

N/A
A-19

Bolt (M6 x 20 mm, Hex Hd.) Part # 660154001 Currently not available

N/A
A-2

Spark Screen Part # 638147007 Currently not available

N/A
A-20

Muffler Bracket Part # 638777012 Currently not available

N/A
A-21

Foot Assembly Part # 310739010 Currently not available

N/A
A-22

Bolt (1/4-20 x 1.5 in.) Part # 661503003 Currently not available

N/A
A-23

Lock Nut (1/4-20) Part # 678016006 Currently not available

N/A
A-24

Axle Part # 661558002 Currently not available

N/A
A-25

Panel Assembly Part # 290403052 Currently not available

N/A
A-26

Washer (3/8 in) Part # 638386003 Currently not available

N/A
A-27

Spacer Part # 638498001 Currently not available

N/A
A-28

Lock Nut (3/8-16) Part # 678659001 Currently not available

N/A
A-29

Wheel (7 in.) Part # 308451030 Currently not available

N/A
A-3

Heat Shield Part # 638539004 Currently not available

N/A
A-30

Star Washer (5/16 in.) Part # 638704001 Currently not available

N/A
A-31

Bolt (5/16-18 x 19 mm) Part # 661502005 Currently not available

N/A
