Homelite RE1030ECKD-(UT-32037) Replacement Parts

Model: RE1030ECKD-(UT-32037)

Brand: Homelite

Download Schematics

Buy Homelite RE1030ECKD-(UT-32037) Mower Parts

Other tools in Homelite Mower Parts category

Fig-0

Page-1

Fig-0

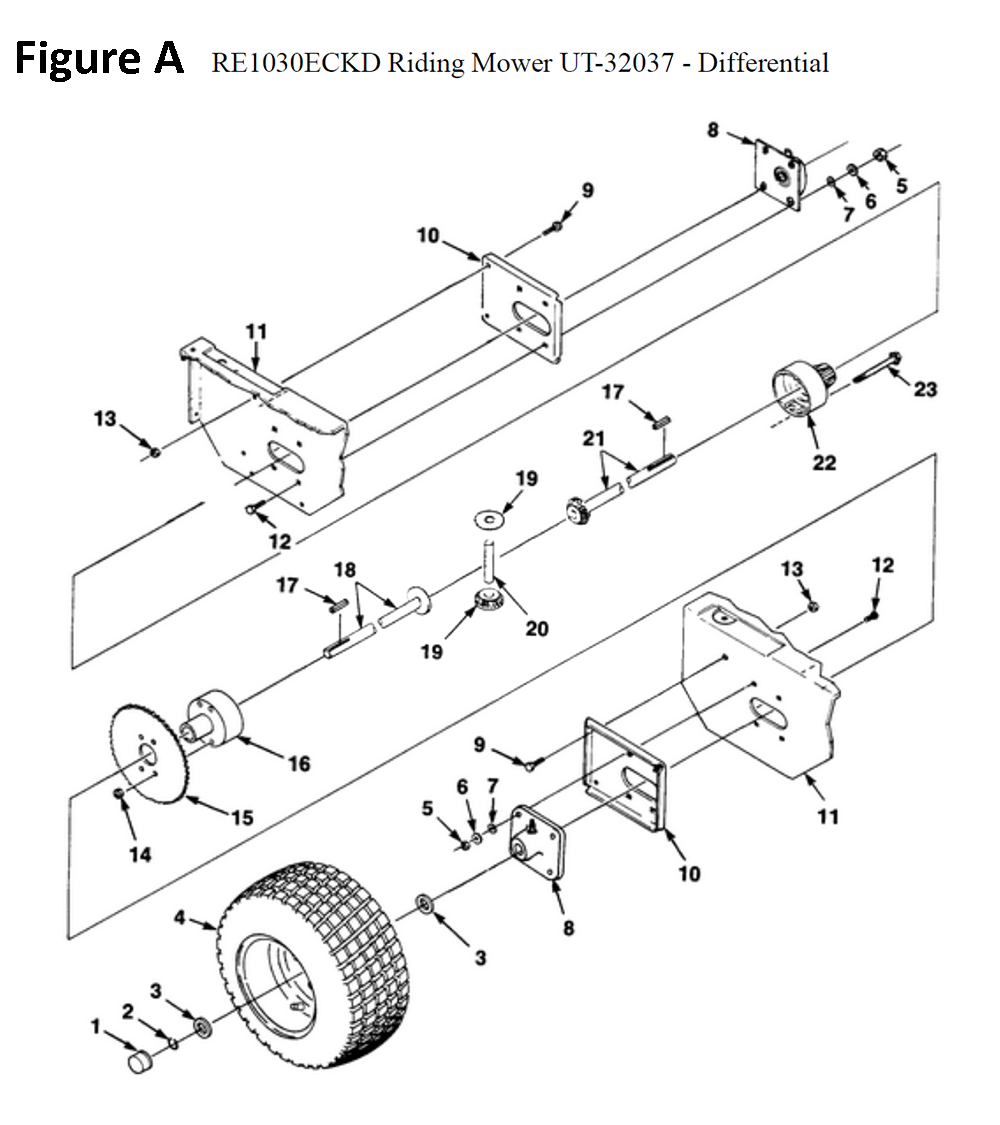

RE1030ECKD-(UT-32037)-homelite-PB-1Break Down

Fig-1

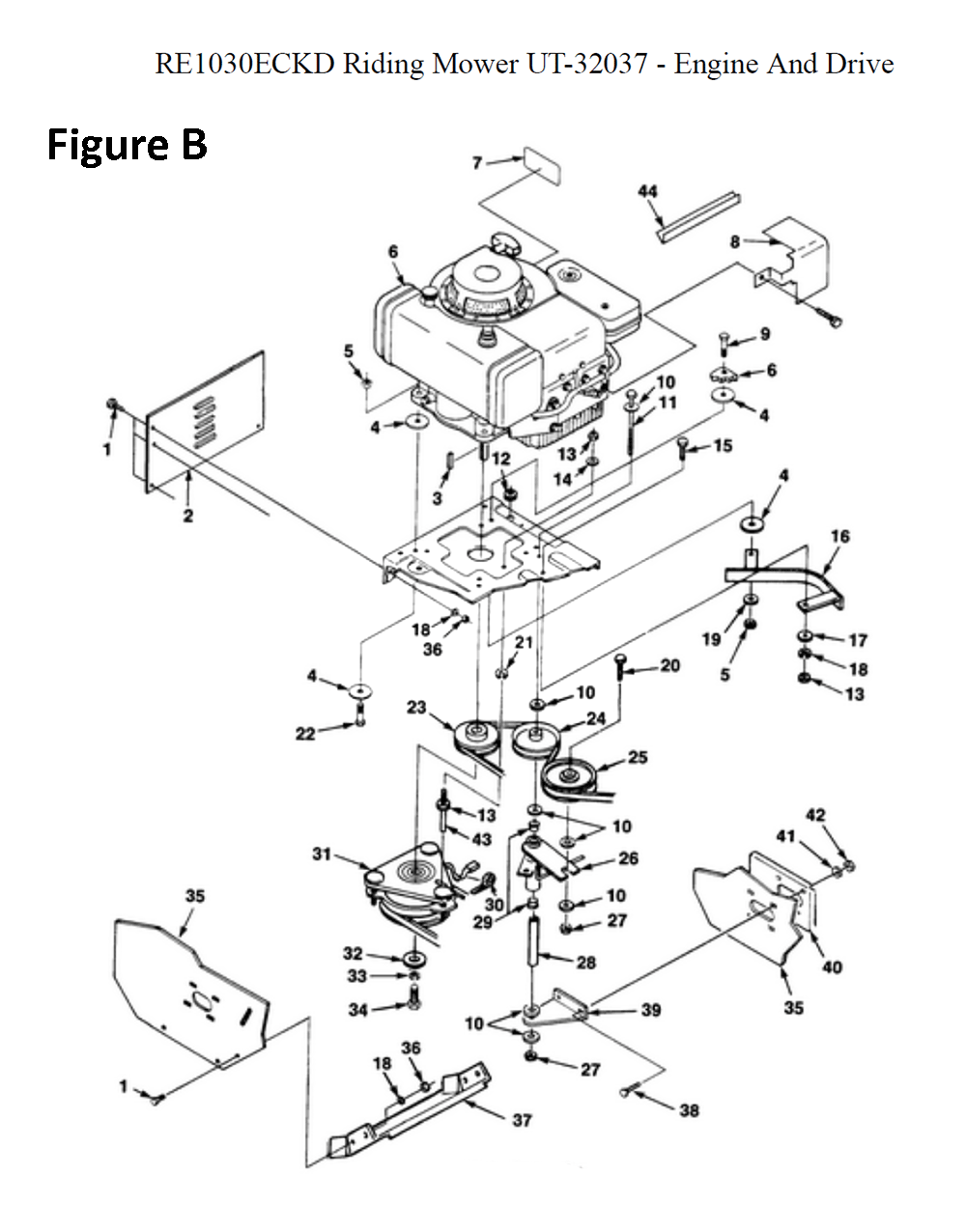

RE1030ECKD-(UT-32037)-homelite-PB-2Break Down

Fig-2

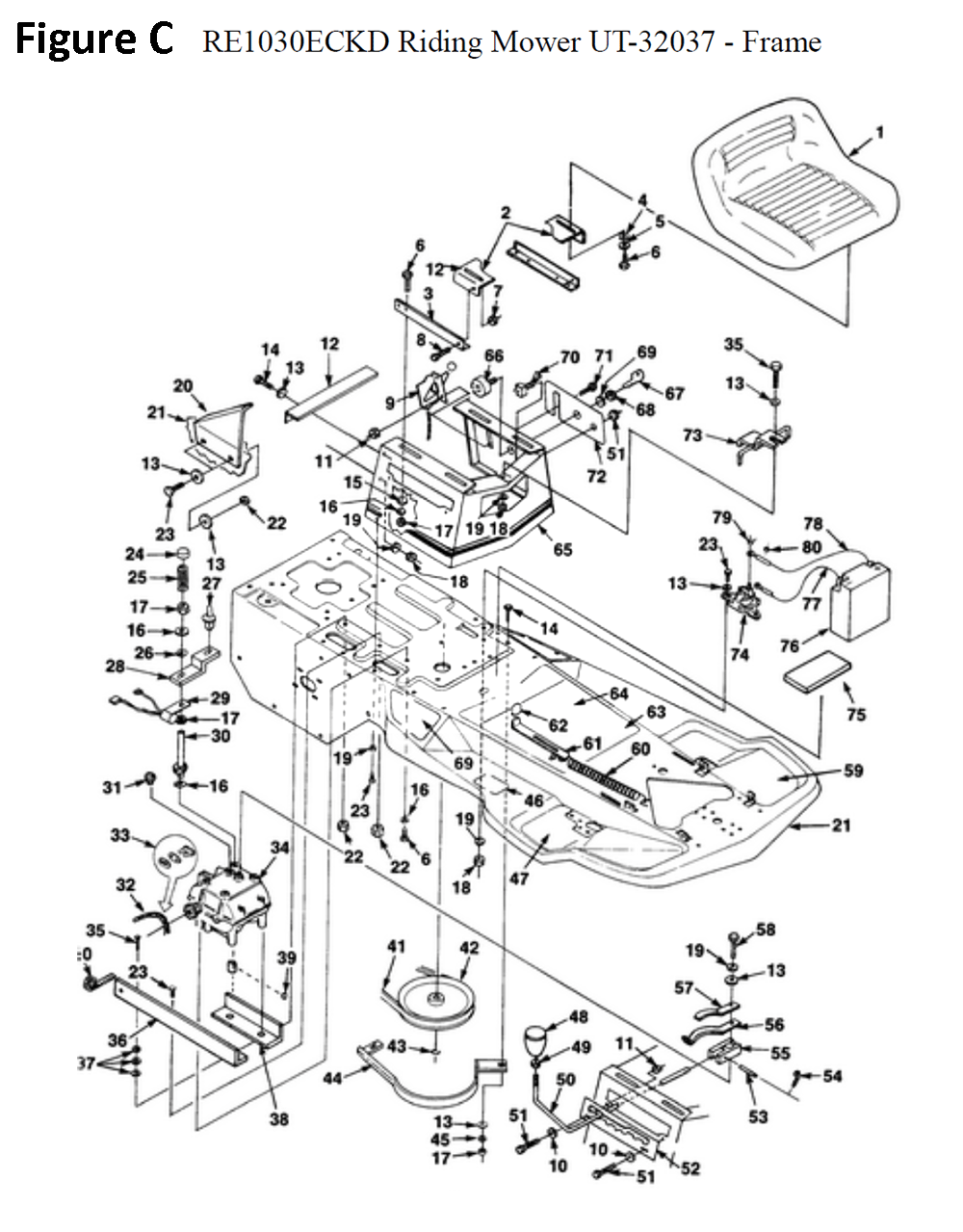

RE1030ECKD-(UT-32037)-homelite-PB-3Break Down

Fig-3

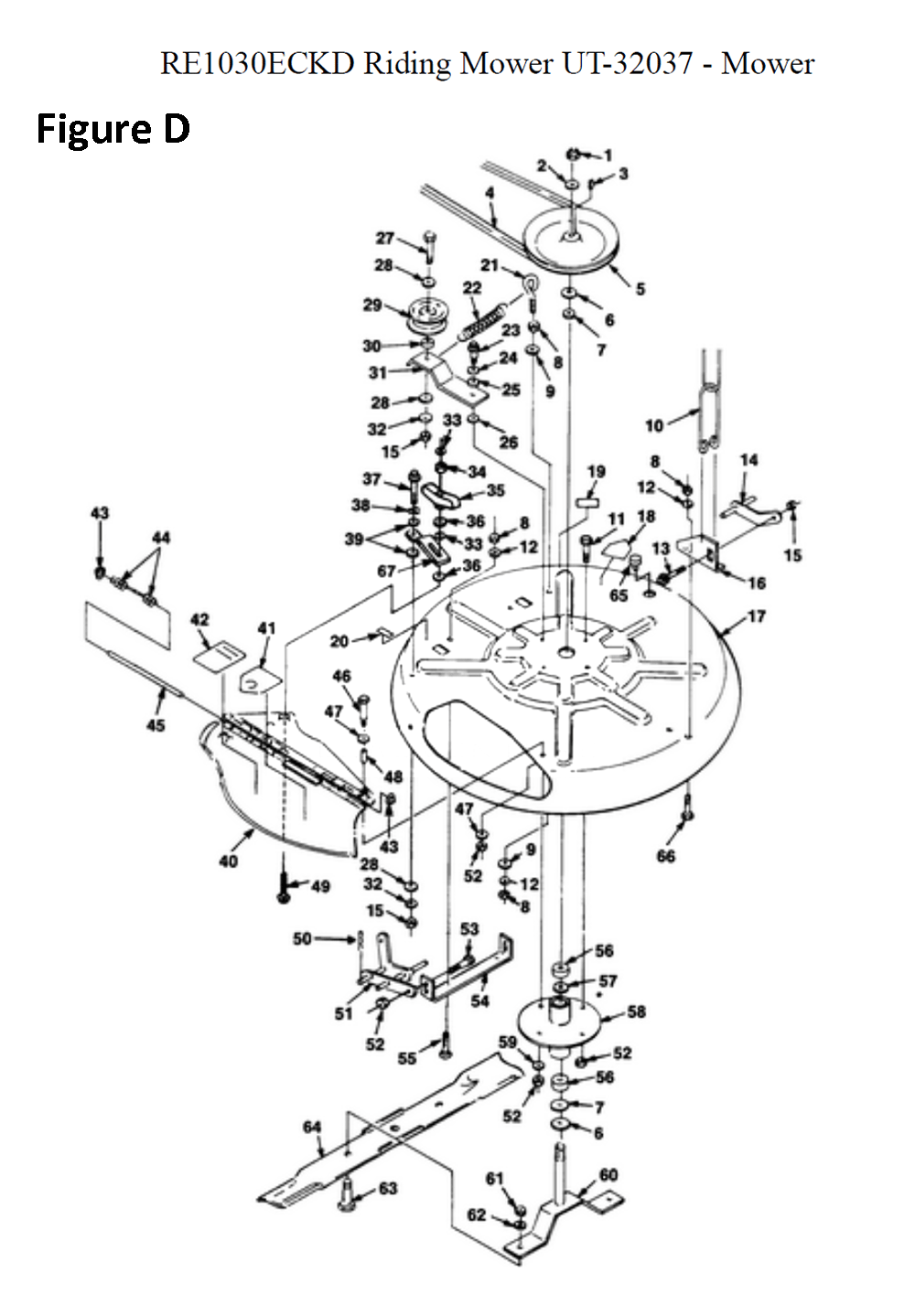

RE1030ECKD-(UT-32037)-homelite-PB-4Break Down

Fig-4

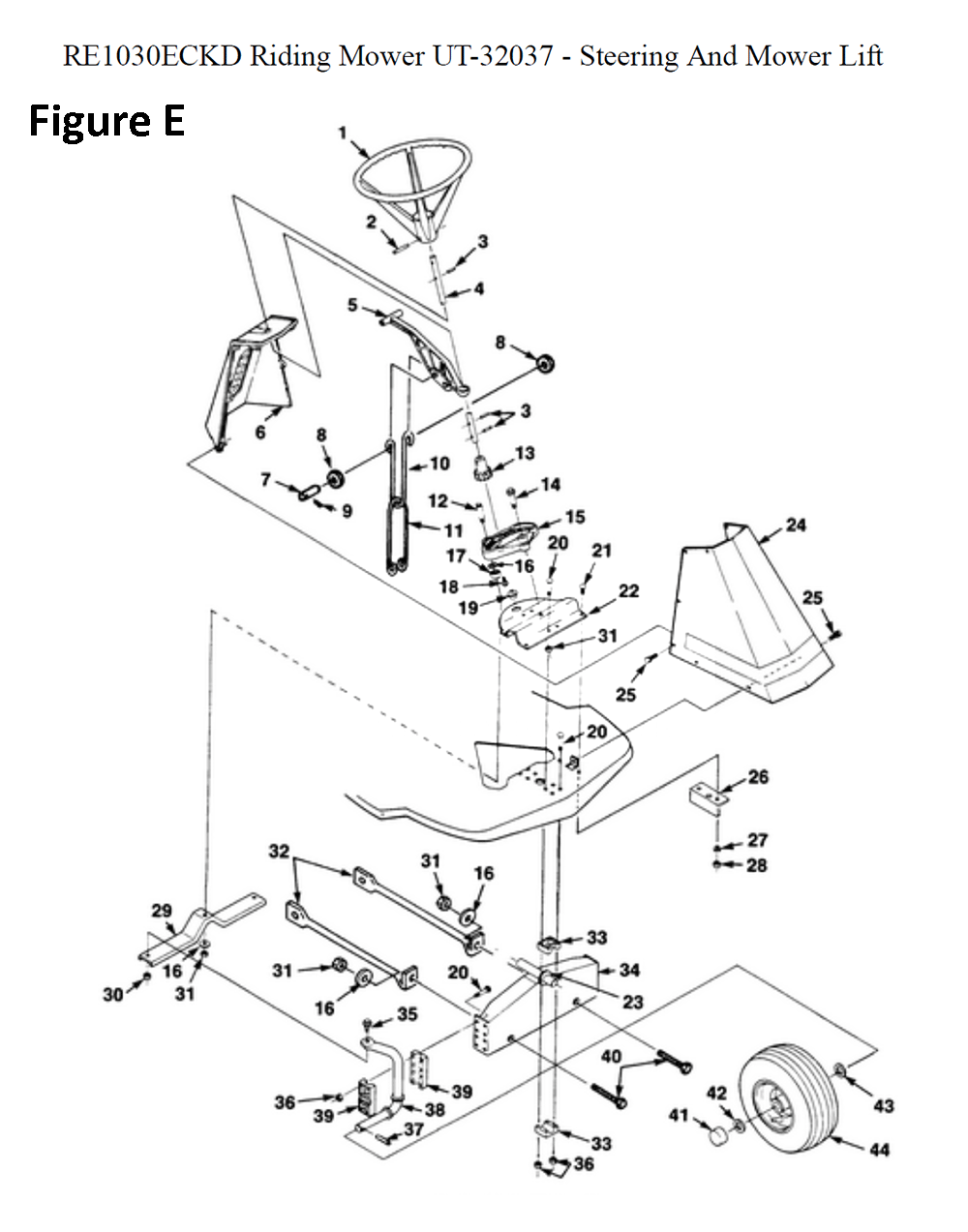

RE1030ECKD-(UT-32037)-homelite-PB-5Break Down

Fig-5

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

Homelite RE1030ECKD-(UT-32037) Replacement Parts List

1

FRAME Part # JA994428 Currently not available

N/A
2

BOLT- Carriage Part # JA441664 Currently not available

N/A
3

BOLT- Carriage 1/4-20 x 1 1/2" Part # JA440050 Currently not available

N/A
4

PIN- Cotter Part # JA460016 Currently not available

N/A
5

WASHER- Flat (5/16") Part # JA453009 Currently not available

N/A
6

ROD- Deck lift Part # JA993945 Currently not available

N/A
7

Part # JA994551 Currently not available

N/A
8

PIN- Cotter 7/16 x 1" Part # JA460212 Currently not available

N/A
9

SPRING- Extension Part # JA376088 Currently not available

N/A
10

Part # JA990983 Currently not available

N/A
11

WASHER Part # JA453011 Currently not available

N/A
12

Part # JA994909 Currently not available

N/A
13

Part # JA444718 Currently not available

N/A
14

Part # JA452006 Currently not available

N/A
15

Part # JA994792 Currently not available

N/A
16

NUT- 5/16-18 hex Part # JA443106 Currently not available

N/A
17

PIN- Cotter Part # JA460026 Currently not available

N/A
18

Superseded by UP03452 Part # JA400198 Currently not available

N/A
19

Part # JA994908 Currently not available

N/A
20

Part # JA453017 Currently not available

N/A
21

AXLE SUPPORT Part # JA990507 Currently not available

N/A
22

Part # JA994590 Currently not available

N/A
23

WASHER Part # JA452004 Currently not available

N/A
24

WASHER- Lock (1/4-20) Part # JA446130 Currently not available

N/A
25

Superseded by JA993730 Part # JA443102 Currently not available

N/A
