Homelite JR830-(UT-32020) Replacement Parts

Model: JR830-(UT-32020)

Brand: Homelite

Download Schematics

Buy Homelite JR830-(UT-32020) Mower Parts

Other tools in Homelite Mower Parts category

Fig-0

Page-1

Fig-0

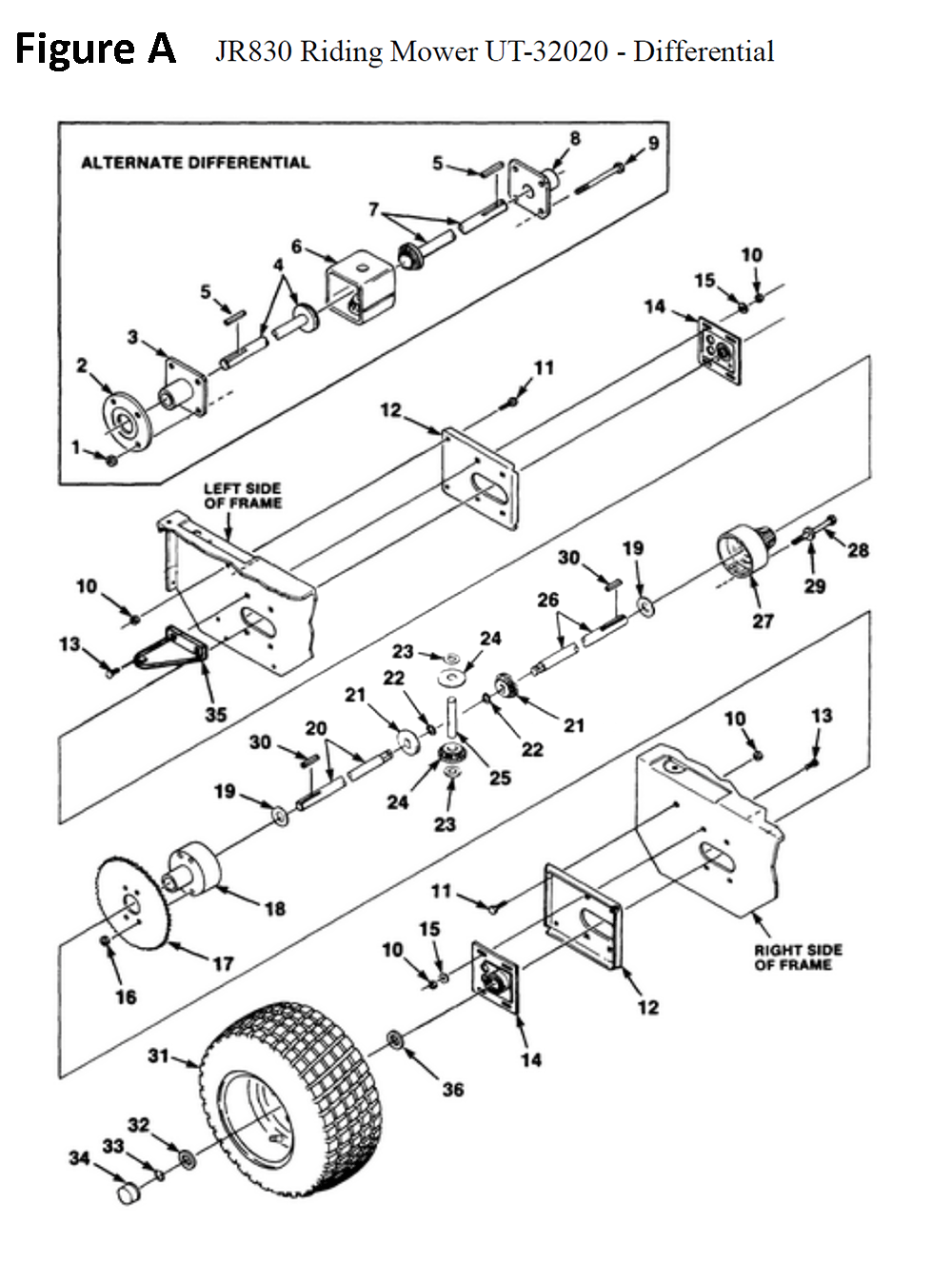

JR830-(UT-32020)-homelite-PB-1Break Down

Fig-1

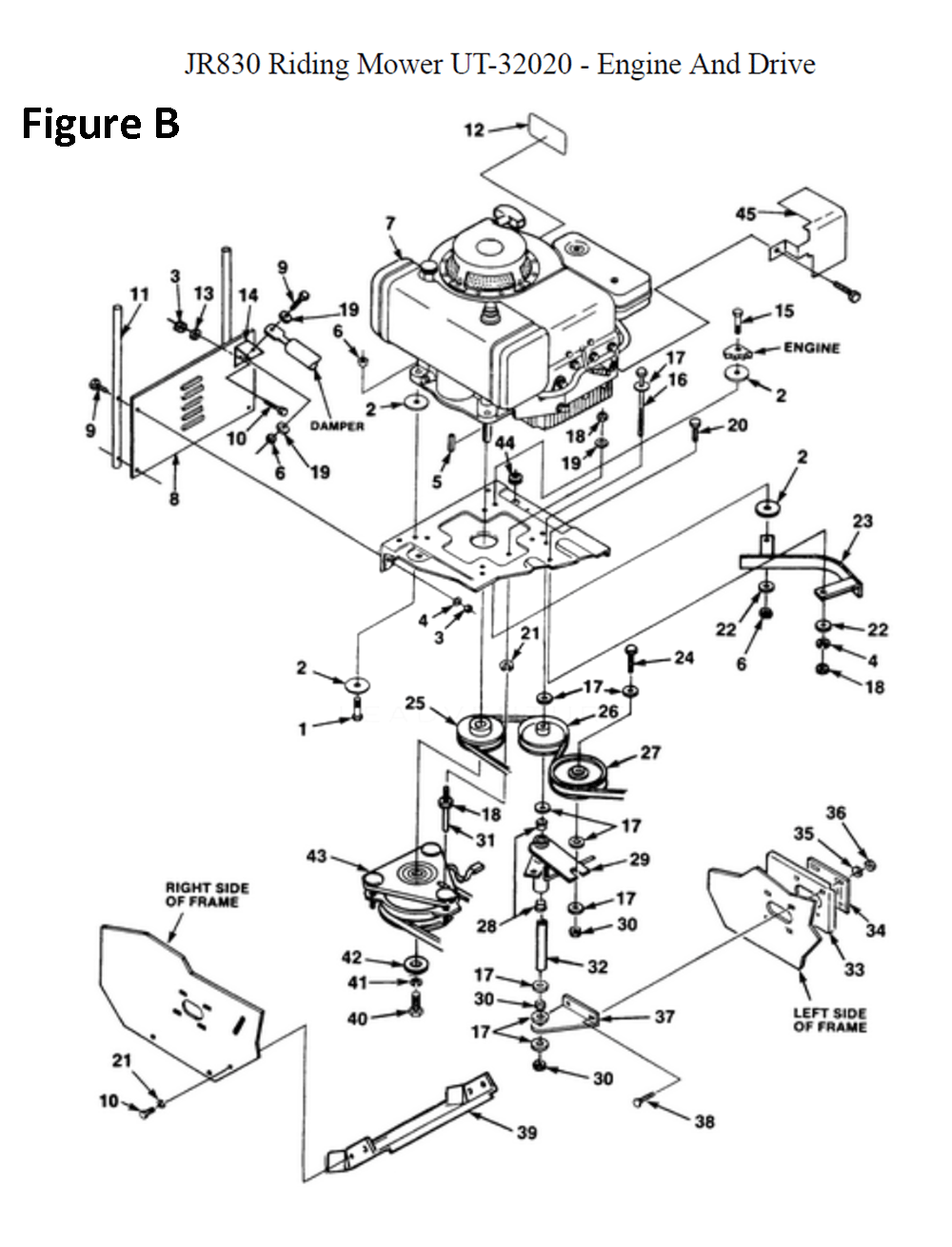

JR830-(UT-32020)-homelite-PB-2Break Down

Fig-2

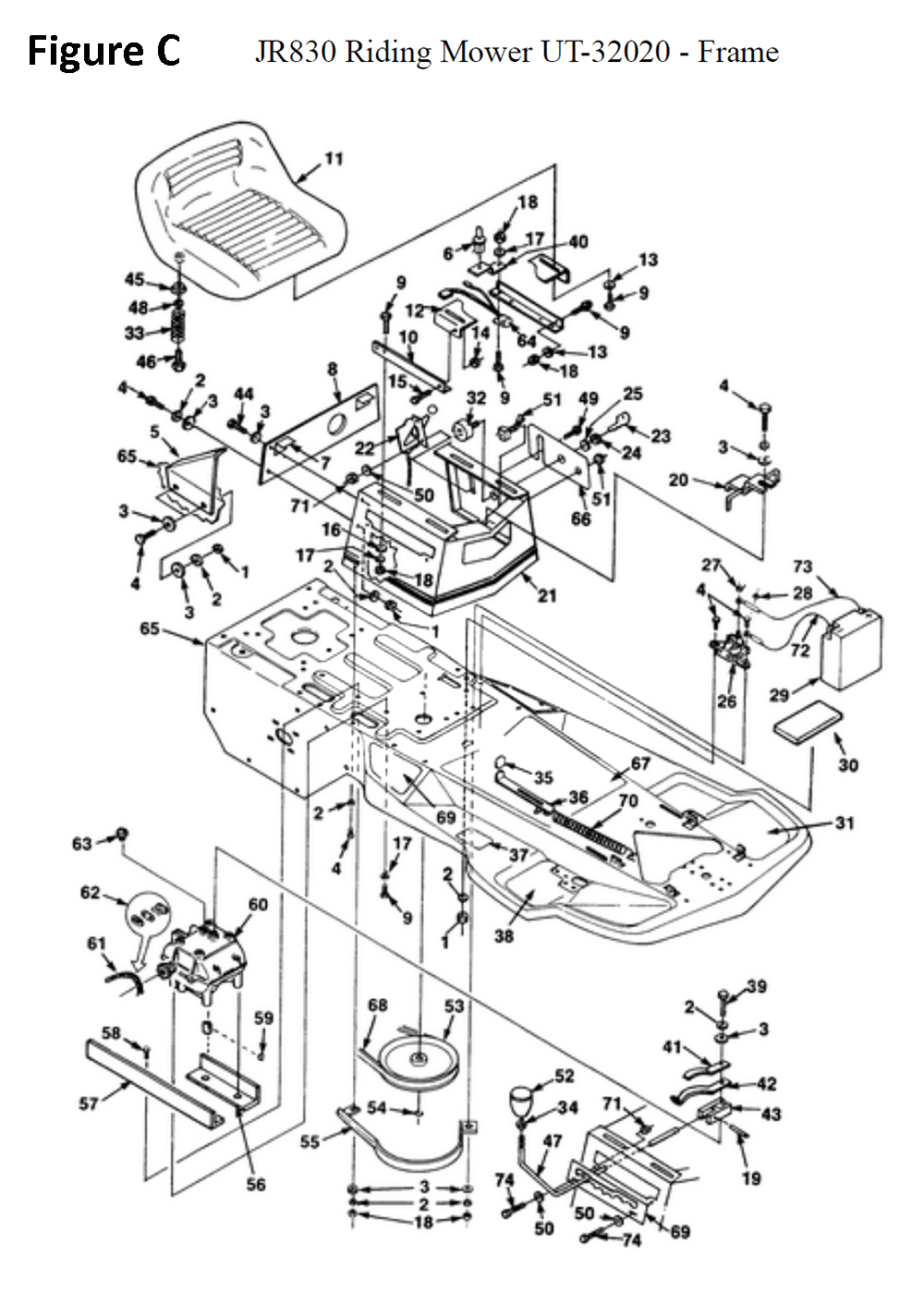

JR830-(UT-32020)-homelite-PB-3Break Down

Fig-3

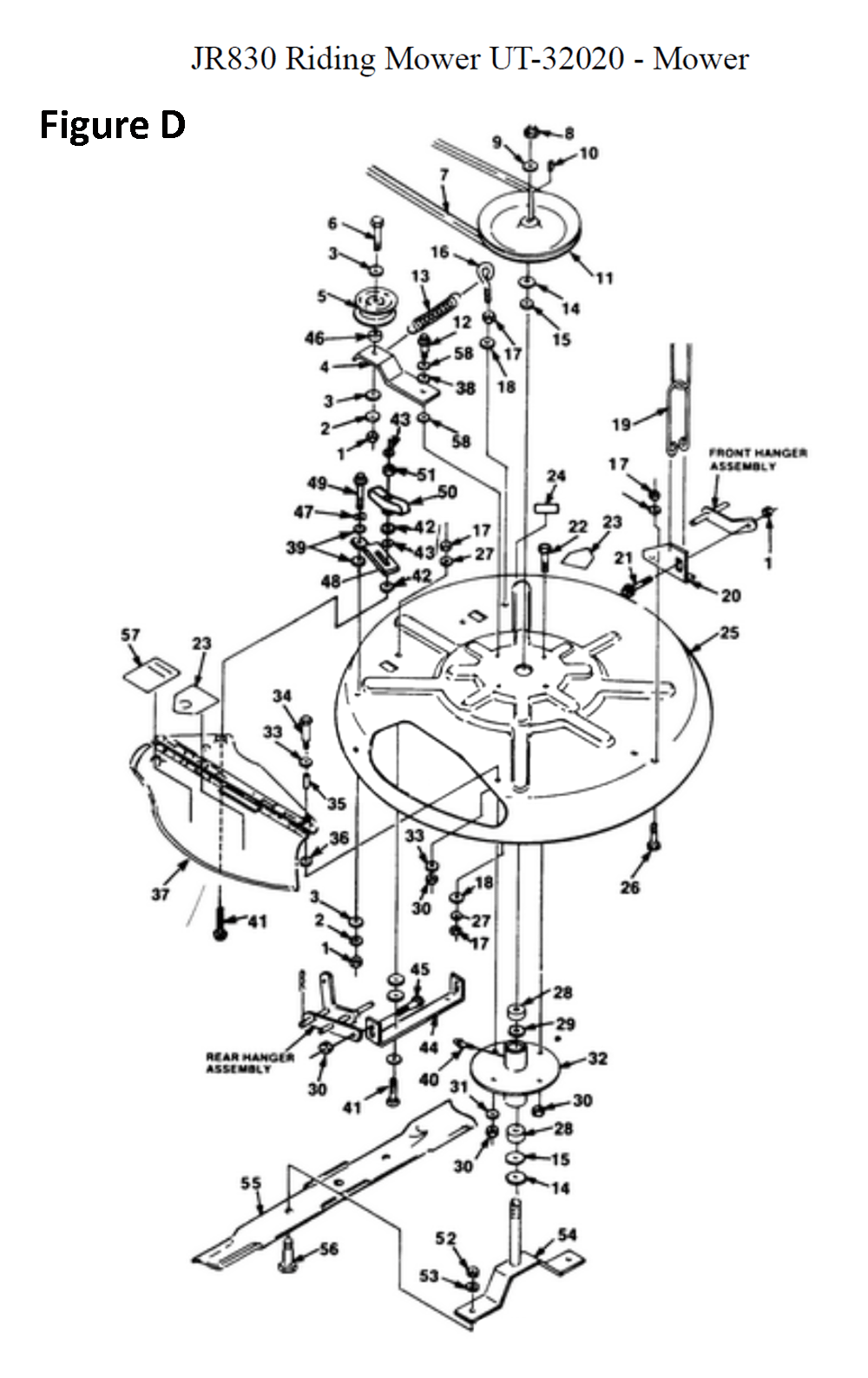

JR830-(UT-32020)-homelite-PB-4Break Down

Fig-4

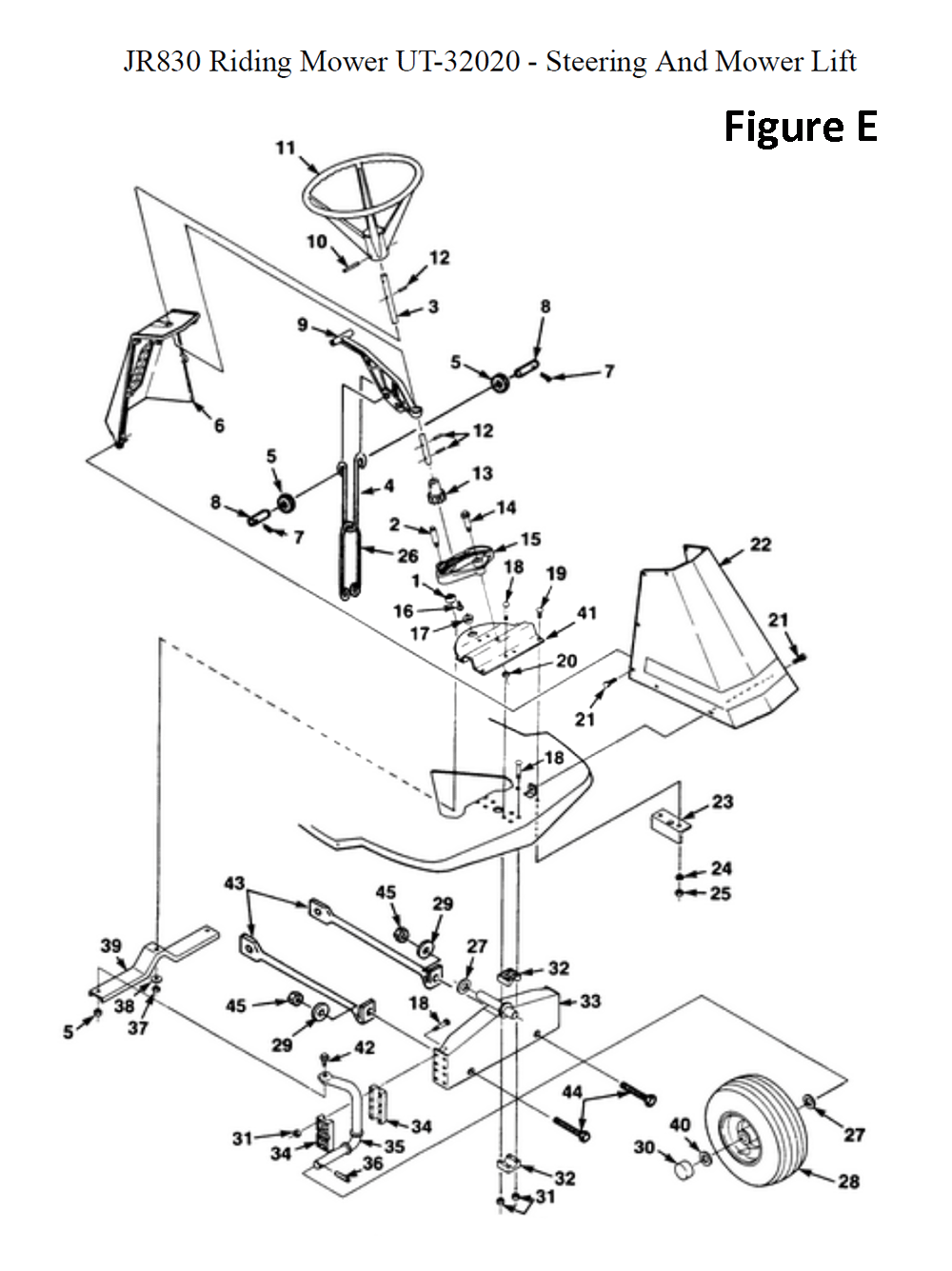

JR830-(UT-32020)-homelite-PB-5Break Down

Fig-5

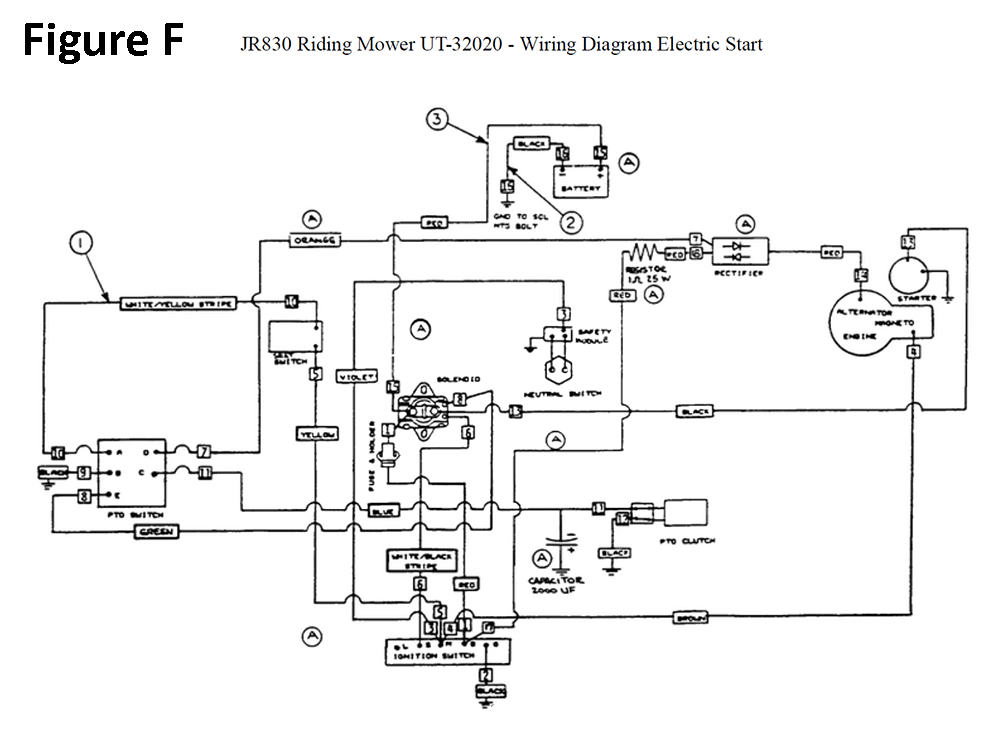

JR830-(UT-32020)-homelite-PB-6Break Down

Fig-6

JR830-(UT-32020)-homelite-PB-7Break Down

Fig-7

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

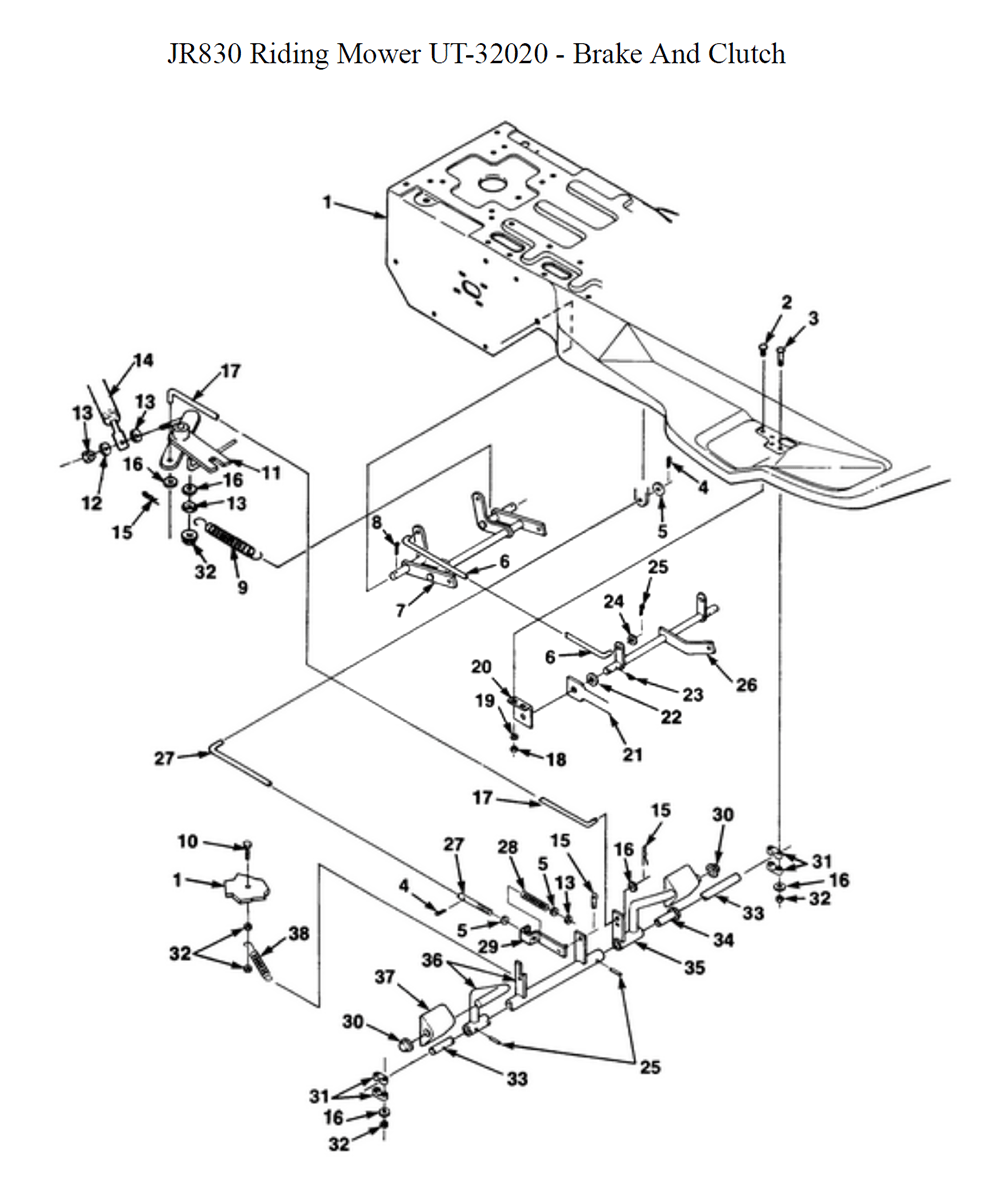

Homelite JR830-(UT-32020) Replacement Parts List

1

FRAME Part # JA991168 Currently not available

N/A
2

BOLT- Carriage Part # JA441664 Currently not available

N/A
3

BOLT- Carriage 1/4-20 x 1 1/2" Part # JA440050 Currently not available

N/A
4

PIN- Cotter Part # JA460016 Currently not available

N/A
5

WASHER- Flat (5/16") Part # JA453009 Currently not available

N/A
6

ROD- Deck lift Part # JA991158 Currently not available

N/A
7

BRACKET- Rear hanger Part # JA991163 Currently not available

N/A
8

PIN- Hair cotter Part # JA460306 Currently not available

N/A
9

SPRING- Extension Part # JA376088 Currently not available

N/A
10

SCREW- 1/4-20 x 5/8 Part # JA400106 Currently not available

N/A
11

ARM- Pivot Part # JA991148 Currently not available

N/A
12

WASHER- Flat (5/16") Part # JA453009 Currently not available

N/A
13

Part # JA444718 Currently not available

N/A
14

DAMPER Part # JA991444 Currently not available

N/A
15

PIN- Cotter 5/64 x .75 Part # JA460008 Currently not available

N/A
16

WASHER Part # JA452004 Currently not available

N/A
17

ROD- Clutch Part # JA991573 Currently not available

N/A
18

Superseded by JA993730 Part # JA443102 Currently not available

N/A
19

WASHER- Lock (1/4-20) Part # JA446130 Currently not available

N/A
20

BRACKET- Front hanger Part # JA375815 Currently not available

N/A
21

AXLE SUPPORT Part # JA990507 Currently not available

N/A
22

Part # JA453017 Currently not available

N/A
23

PIN- Cotter 7/16 x 1" Part # JA460212 Currently not available

N/A
24

WASHER- Flat (3/8") Part # JA 452008 Currently not available

N/A
25

Part # JA461346 Currently not available

N/A
