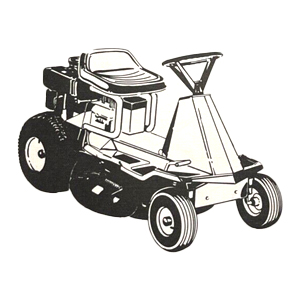

Homelite HR830E-(UT-32024) Replacement Parts

Model: HR830E-(UT-32024)

Brand: Homelite

Download Schematics

Buy Homelite HR830E-(UT-32024) Mower Parts

Other tools in Homelite Mower Parts category

Fig-0

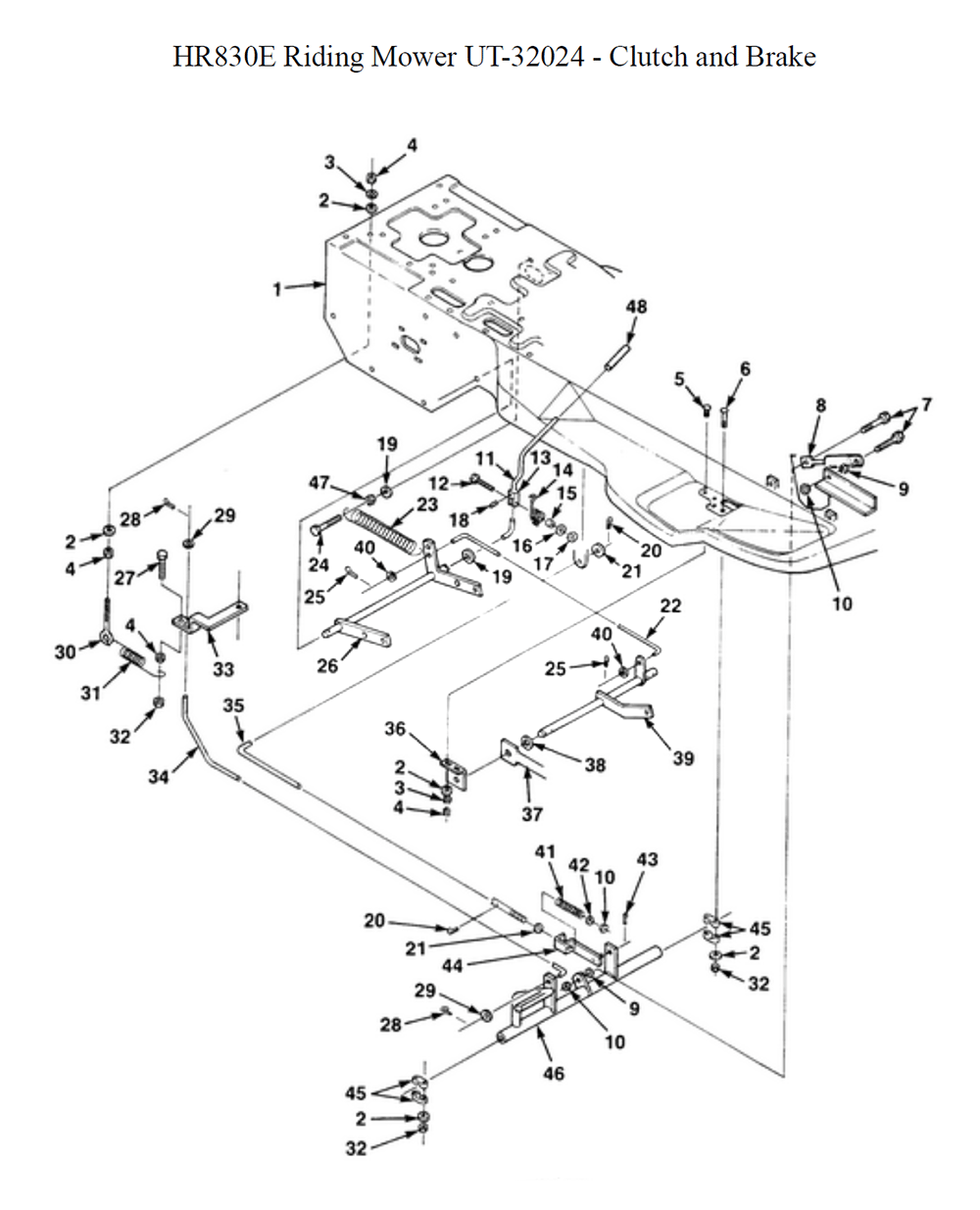

Page-1

Fig-0

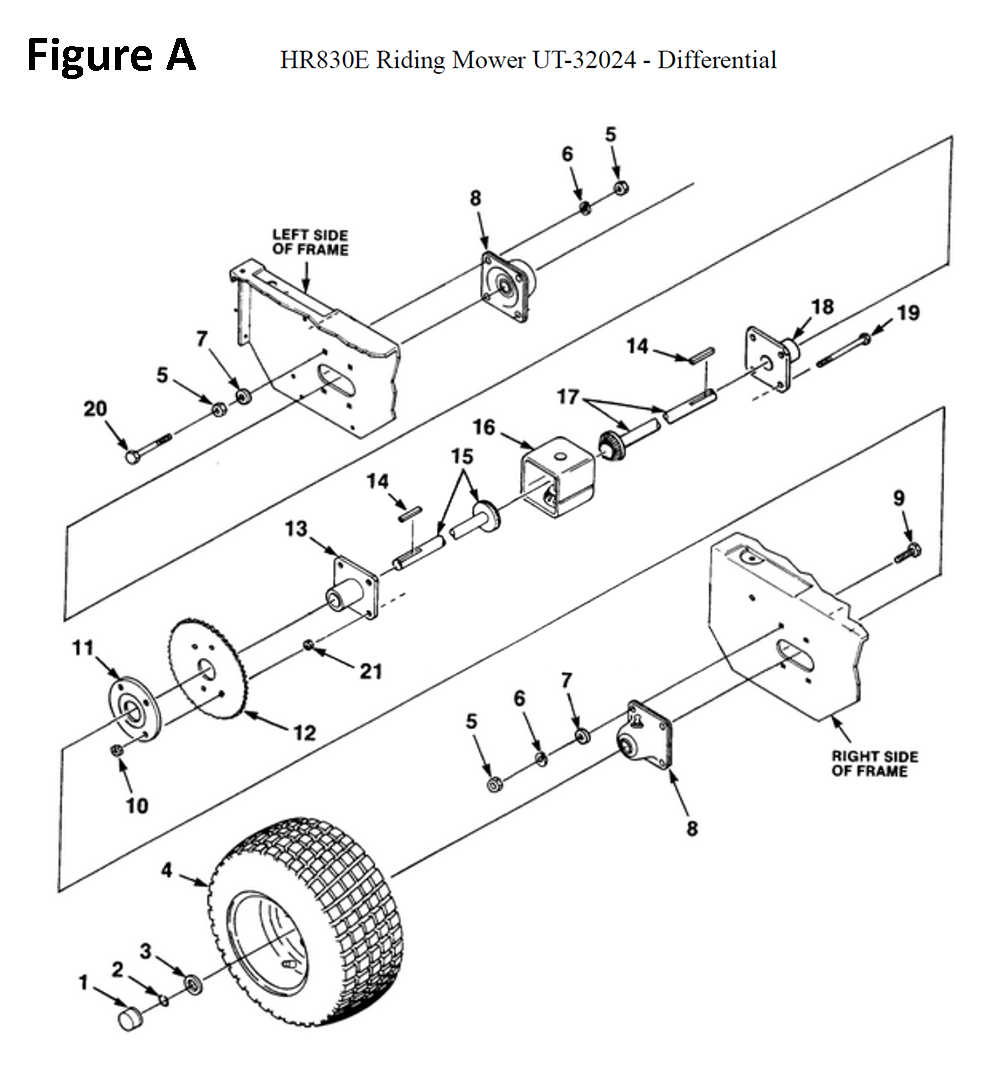

HR830E-(UT-32024)-homelite-PB-1Break Down

Fig-1

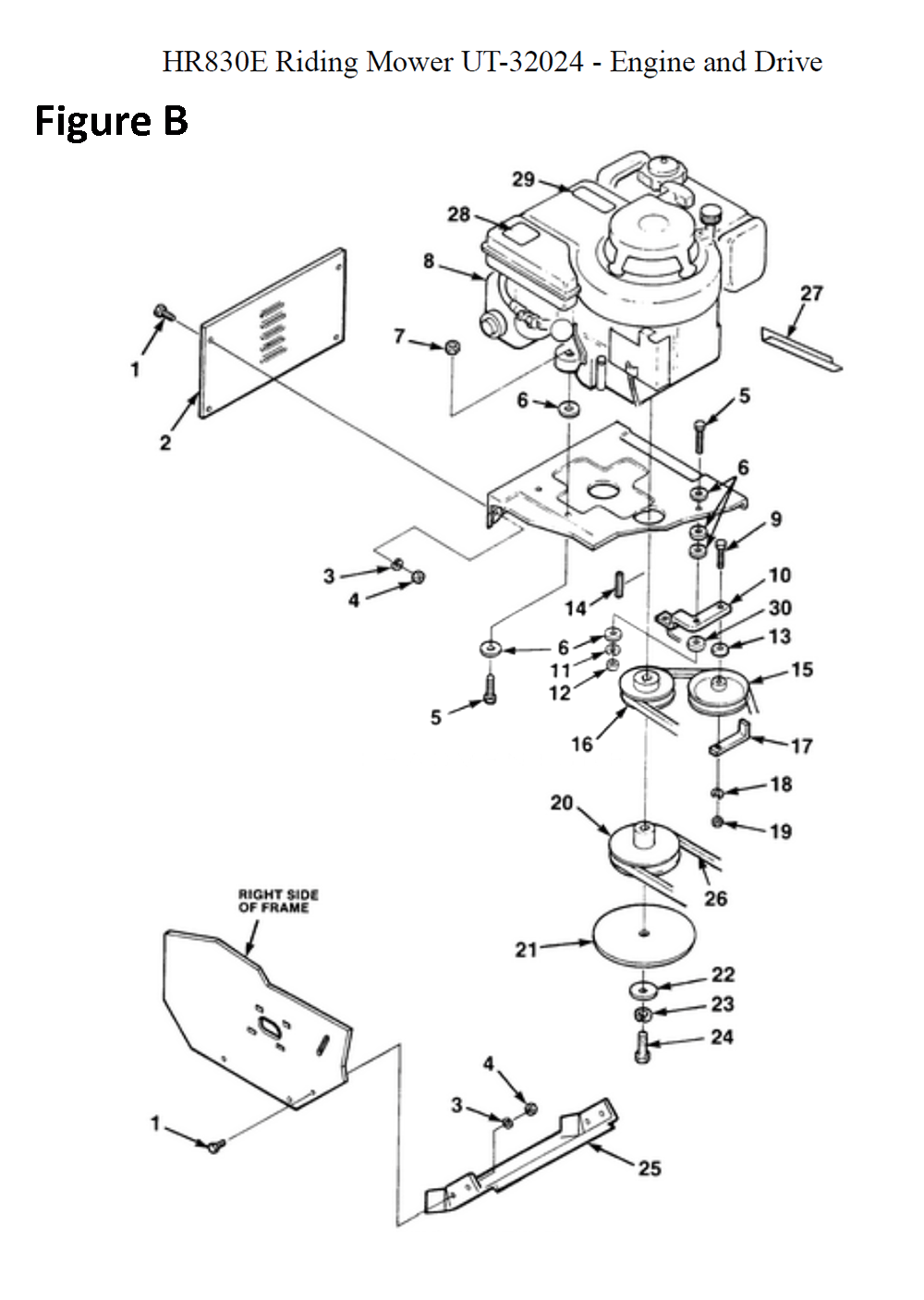

HR830E-(UT-32024)-homelite-PB-2Break Down

Fig-2

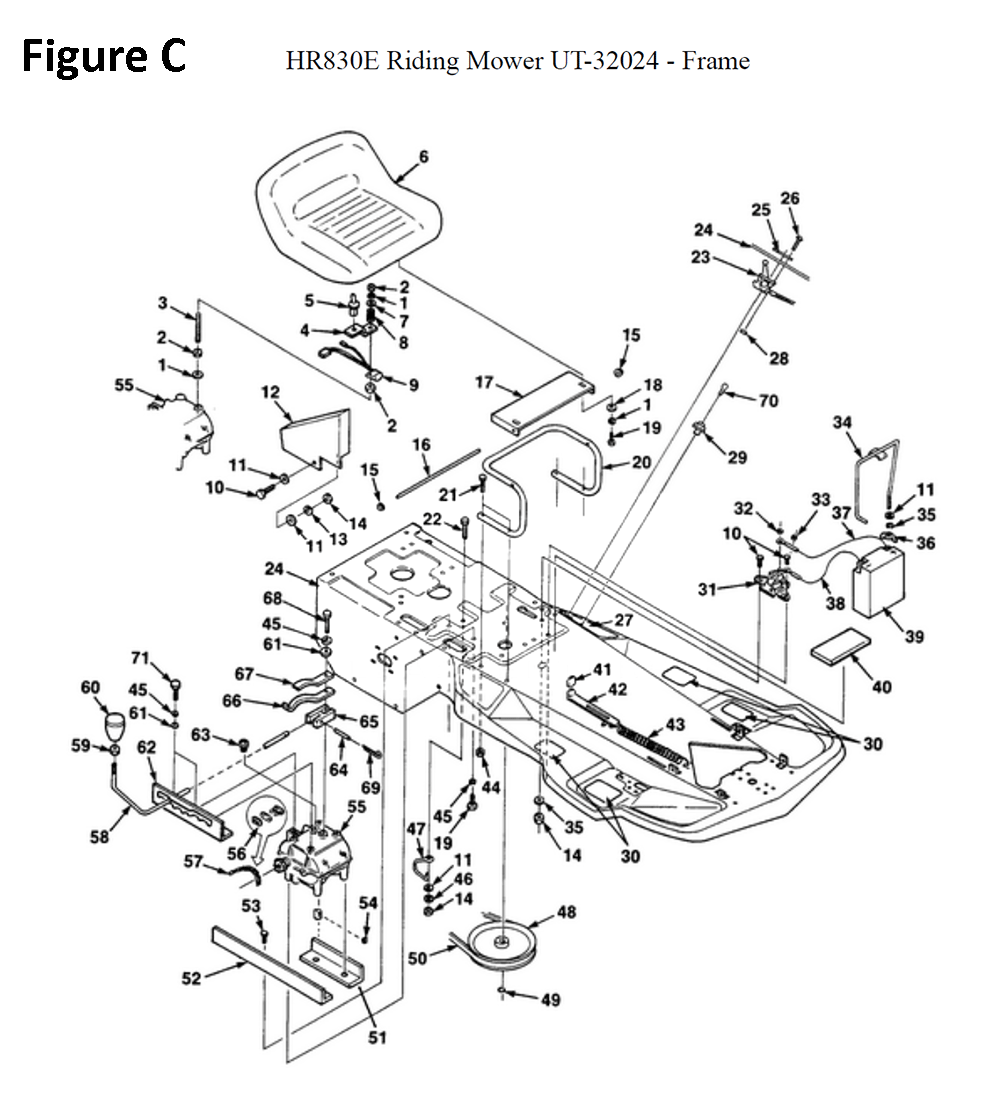

HR830E-(UT-32024)-homelite-PB-3Break Down

Fig-3

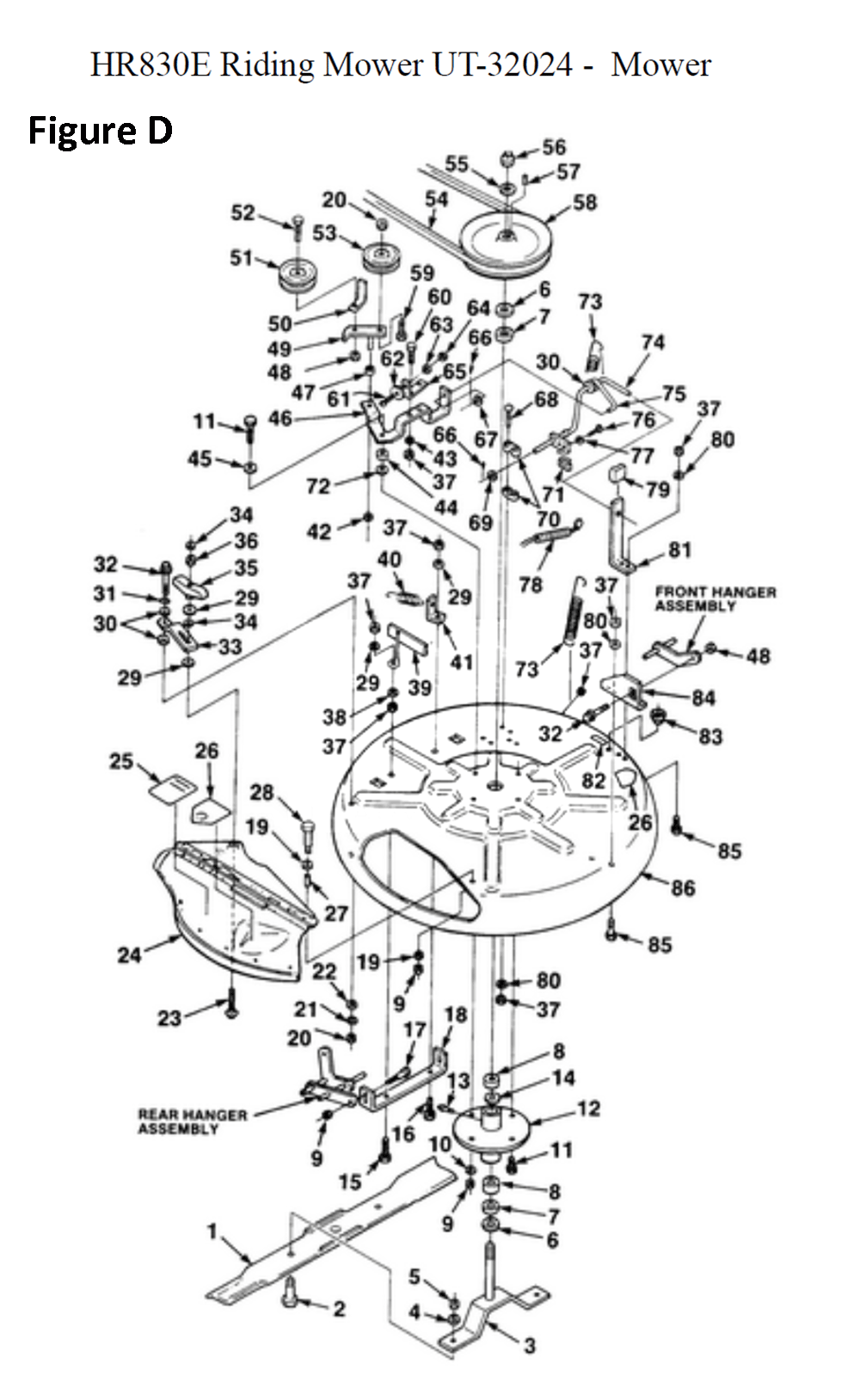

HR830E-(UT-32024)-homelite-PB-4Break Down

Fig-4

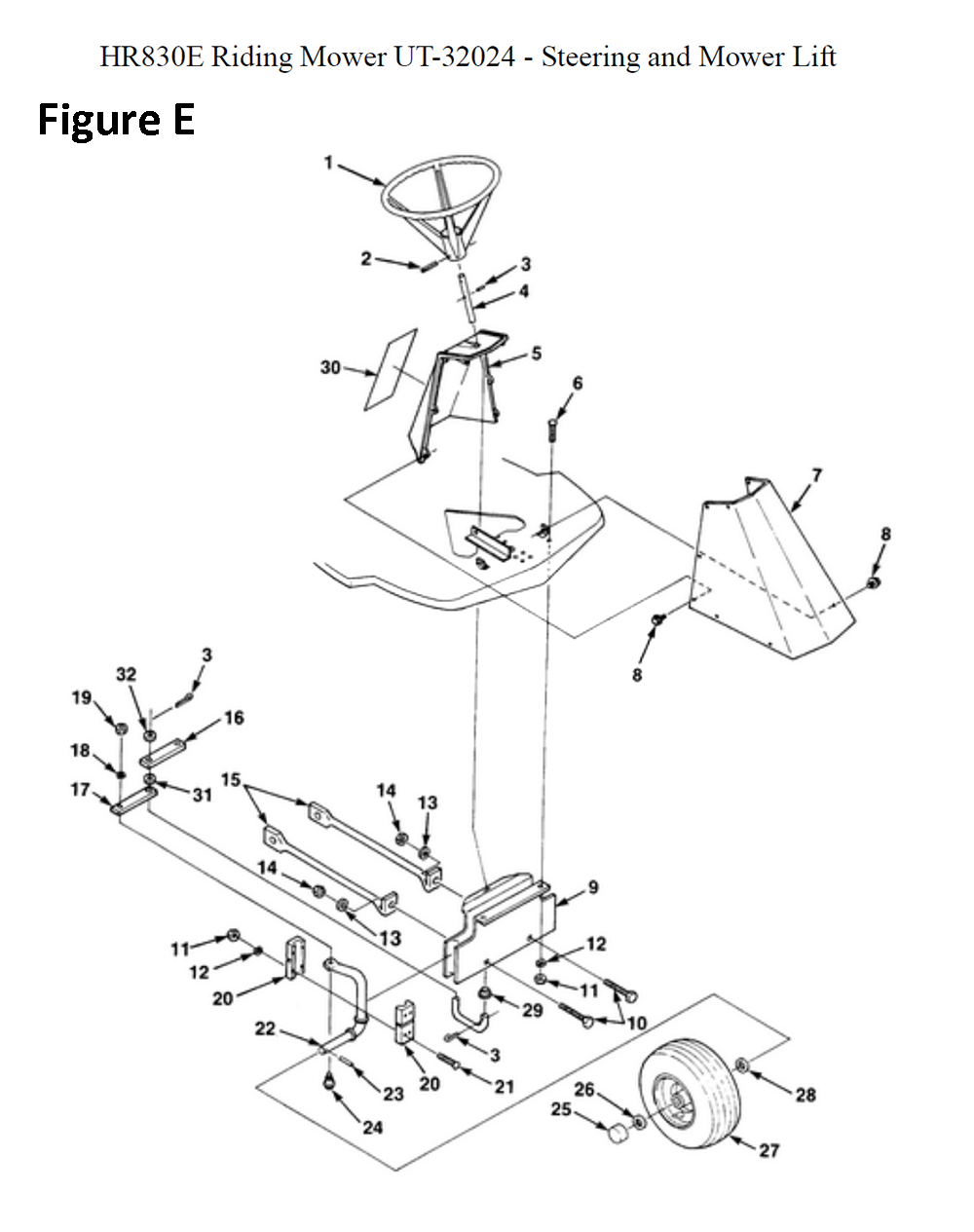

HR830E-(UT-32024)-homelite-PB-5Break Down

Fig-5

HR830E-(UT-32024)-homelite-PB-6Break Down

Fig-6

HR830E-(UT-32024)-homelite-PB-7Break Down

Fig-7

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

Homelite HR830E-(UT-32024) Replacement Parts List

1

FRAME Part # JA994038 Currently not available

N/A
2

WASHER Part # JA452004 Currently not available

N/A
3

WASHER- Lock (1/4-20) Part # JA446130 Currently not available

N/A
4

Superseded by JA993730 Part # JA443102 Currently not available

N/A
5

BOLT- Carriage Part # JA441664 Currently not available

N/A
6

BOLT- Carriage 1/4-20 x 1 1/2" Part # JA440050 Currently not available

N/A
7

SCREW- (5/16-18 x 1 3/4") Part # JA400192 Currently not available

N/A
8

DAMPER Part # JA991444 Currently not available

N/A
9

NUT- 5/16-18 hex Part # JA443106 Currently not available

N/A
10

Part # JA444718 Currently not available

N/A
11

HANDLE- Lift Part # JA992626 Currently not available

N/A
12

SCREW- Hex sems 10-24 x 2 (prior to Lot #D200) Part # 88057 Currently not available

N/A
13

BRACKET- Pivot Part # JA992621 Currently not available

N/A
14

SPRING- Torsion Part # JA993017 Currently not available

N/A
15

SPACER Part # JA993016 Currently not available

N/A
16

WASHER- Plain #10 Part # JA455024 Currently not available

N/A
17

NUT- Ctr lock (#10-24) Part # JA444782 Currently not available

N/A
18

PIN- Dowel 1/4 x 1" Part # JA461523 Currently not available

N/A
19

WASHER Part # JA453011 Currently not available

N/A
20

PIN- Cotter Part # JA460016 Currently not available

N/A
21

WASHER- Flat (5/16") Part # JA453009 Currently not available

N/A
22

ROD- Lift Part # JA994042 Currently not available

N/A
23

SPRING- Extension Part # JA376088 Currently not available

N/A
24

SCREW- (3/8-16 x 2 1/4") Part # JA400272 Currently not available

N/A
25

PIN- Cotter 7/16 x 1" Part # JA460212 Currently not available

N/A
