Homelite 540-(UT-10611) Replacement Parts

Model: 540-(UT-10611)

Brand: Homelite

Download Schematics

Buy Homelite 540-(UT-10611) Chain Saw Parts

Other tools in Homelite Chain Saw Parts category

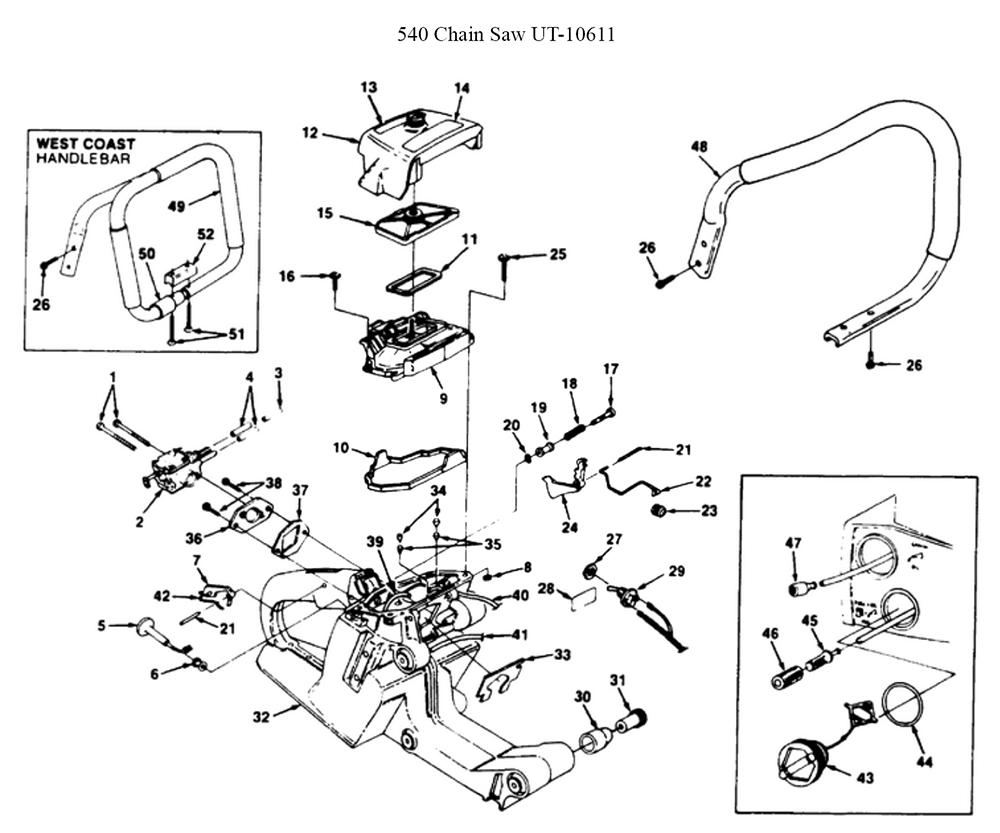

Fig-0

Page-1

Fig-0

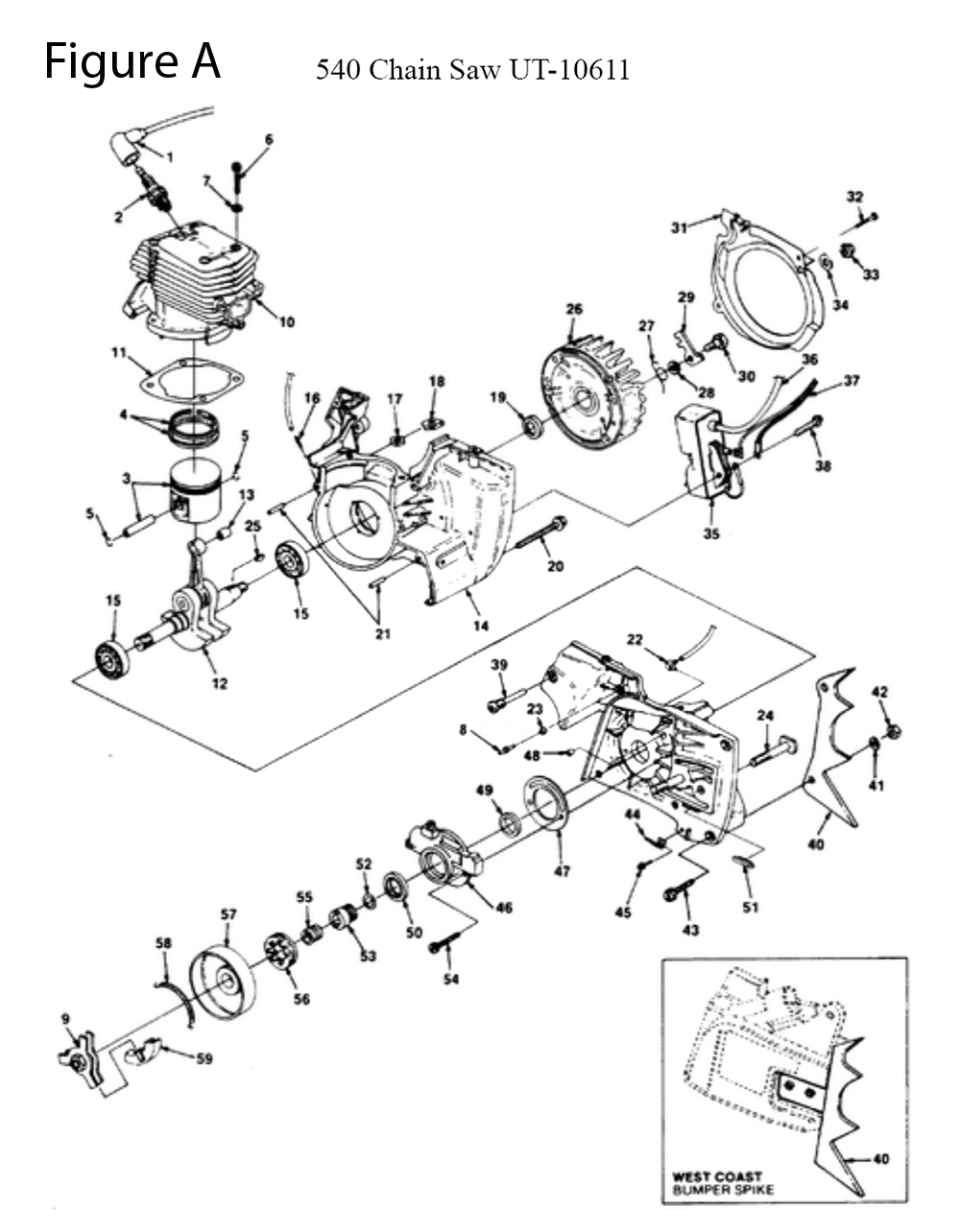

540-(UT-10611)-homelite-PB-1Break Down

Fig-1

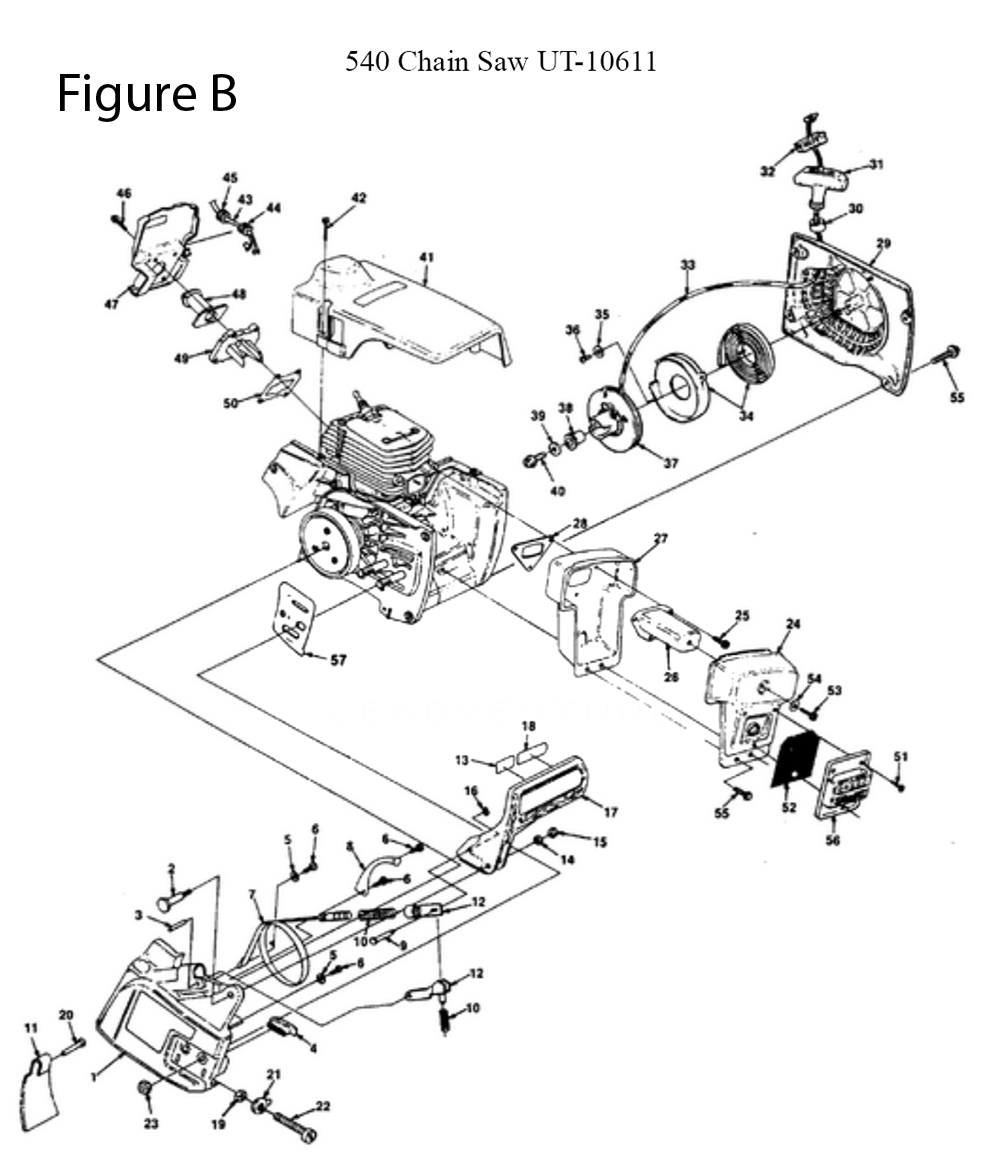

540-(UT-10611)-homelite-PB-2Break Down

Fig-2

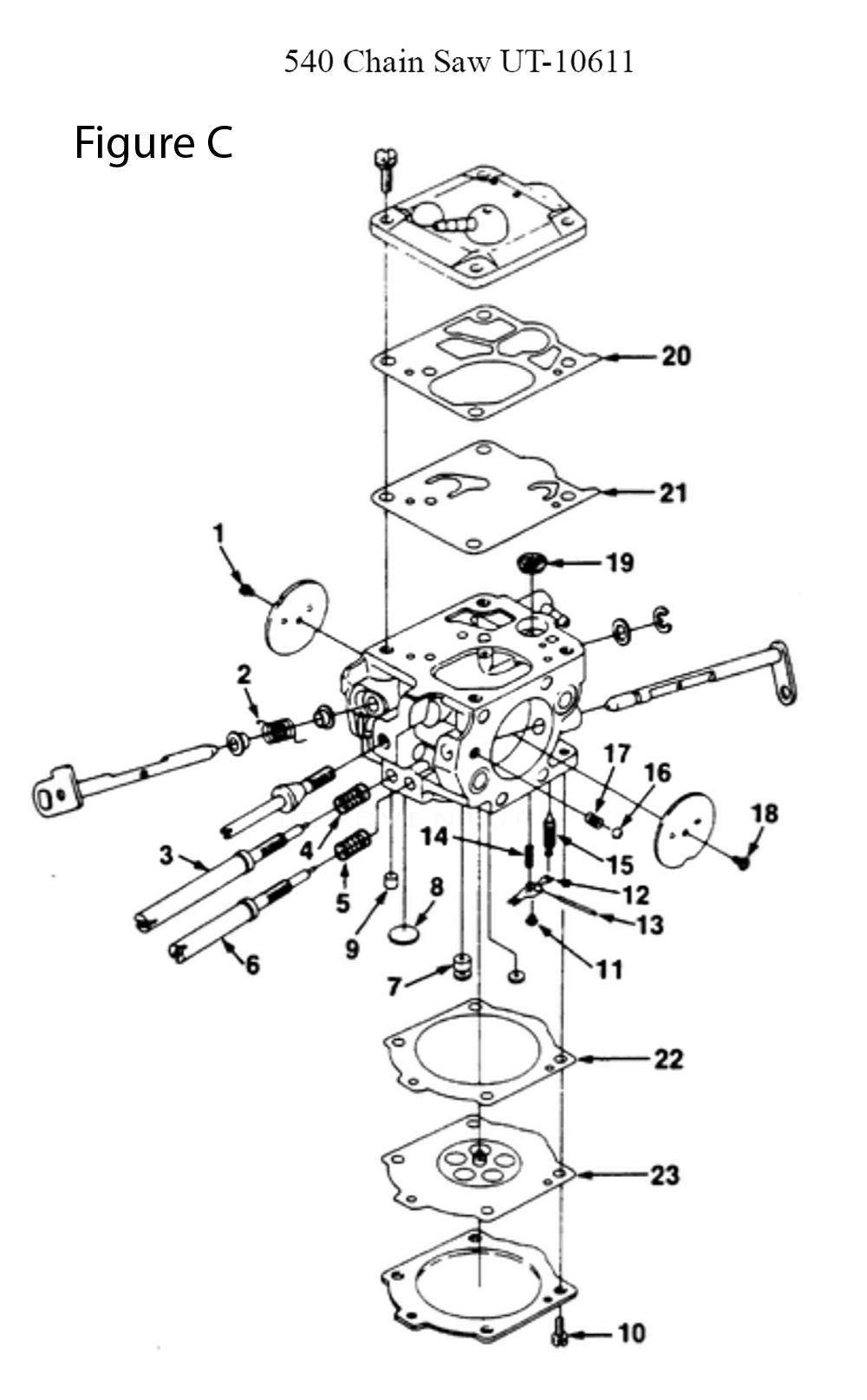

540-(UT-10611)-homelite-PB-3Break Down

Fig-3

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

Homelite 540-(UT-10611) Replacement Parts List

1

SCREW- Mach Hex hd. (10-24 x 2") Part # 82281 Currently not available

N/A
2

CARBURETOR- (Walbro WJ-2) Part # A97318 Currently not available

N/A
3

TUBING Part # 00039 Currently not available

N/A
4

TUBING Part # 00038 Currently not available

N/A
5

ROD- Choke Part # 97292 Currently not available

N/A
6

GROMMET Choke Part # 64862 Currently not available

N/A
7

LOCK - Trigger Part # 93385A Currently not available

N/A
8

NUT-Hex 8-32 Part # 81009 Currently not available

N/A
9

COVER- Carburetor chamber Part # A97296 Currently not available

N/A
10

GASKET Part # 97298 Currently not available

N/A
11

GASKET- Air filter Part # 97299 Currently not available

N/A
12

COVER- Air filter Part # A97689 Currently not available

N/A
13

DECAL- Warning Part # 00780 Currently not available

N/A
14

DECAL Warning Part # 96731 Currently not available

N/A
15

ELEMENT- Filter Part # A97303 Currently not available

N/A
16

SCREW- (8-32 x 3/8") Part # 80577 Currently not available

N/A
17

PIN- Throttle lock Part # 95671 Currently not available

N/A
18

SPRING- Compression Part # 95020 Currently not available

N/A
19

BUSHING- Flanged Part # 95989 Currently not available

N/A
20

RING-Retaining Part # 58409 Currently not available

N/A
21

PIN- Trigger Part # 68548 Currently not available

N/A
22

ROD- Throttle Part # 97294 Currently not available

N/A
23

BOOT Throttle Cable Part # 69889 Currently not available

N/A
24

TRIGGER - Throttle Part # 93842 Currently not available

N/A
25

SCREW-Pan Hd. (8/32 X 5/8") Part # 80582 Currently not available

N/A
