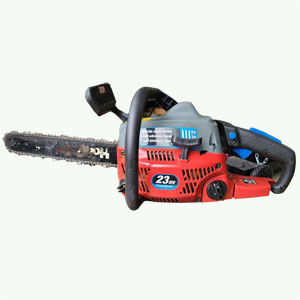

Homelite 23AV-(UT-10856) Replacement Parts

Model: 23AV-(UT-10856)

Brand: Homelite

Download Schematics

Buy Homelite 23AV-(UT-10856) Chain Saw Parts

Other tools in Homelite Chain Saw Parts category

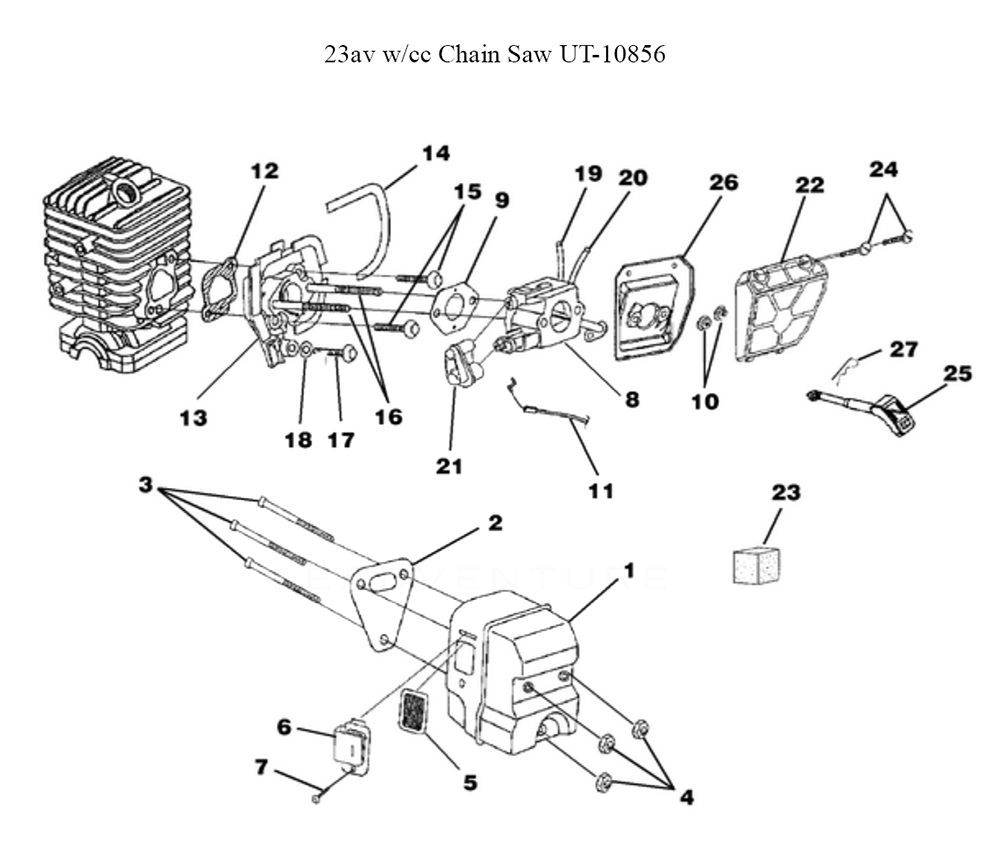

Fig-0

Page-1

Fig-0

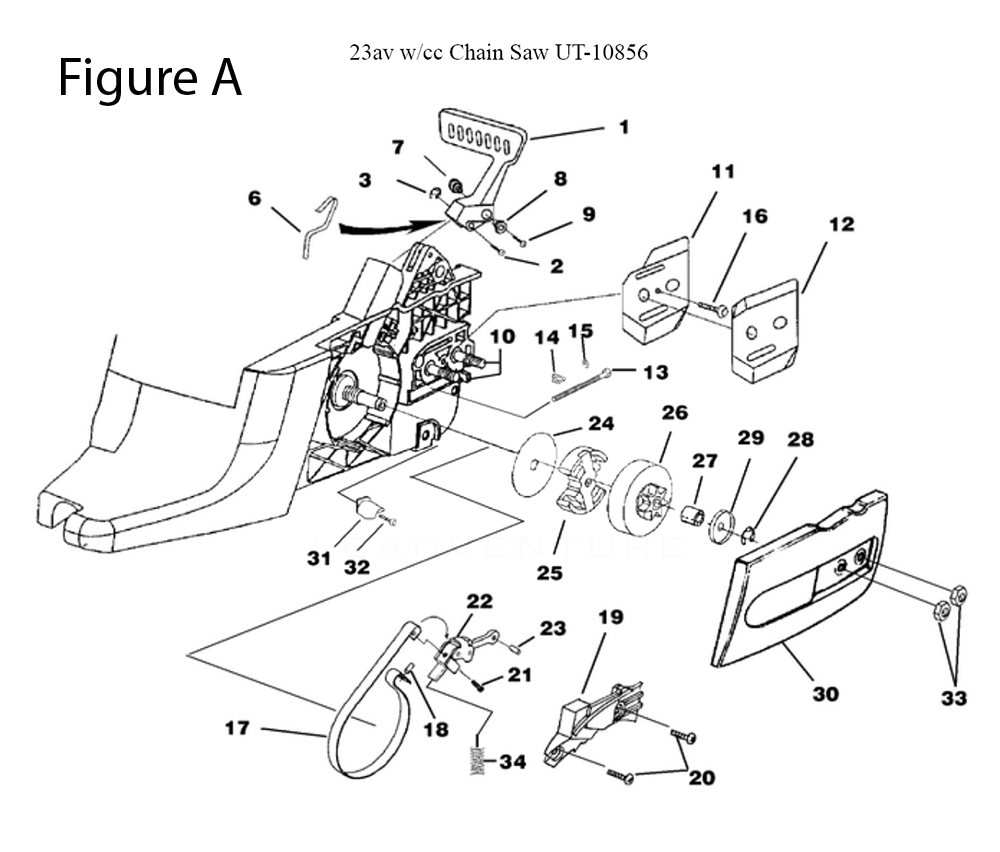

-299691-PBBreak Down

Fig-1

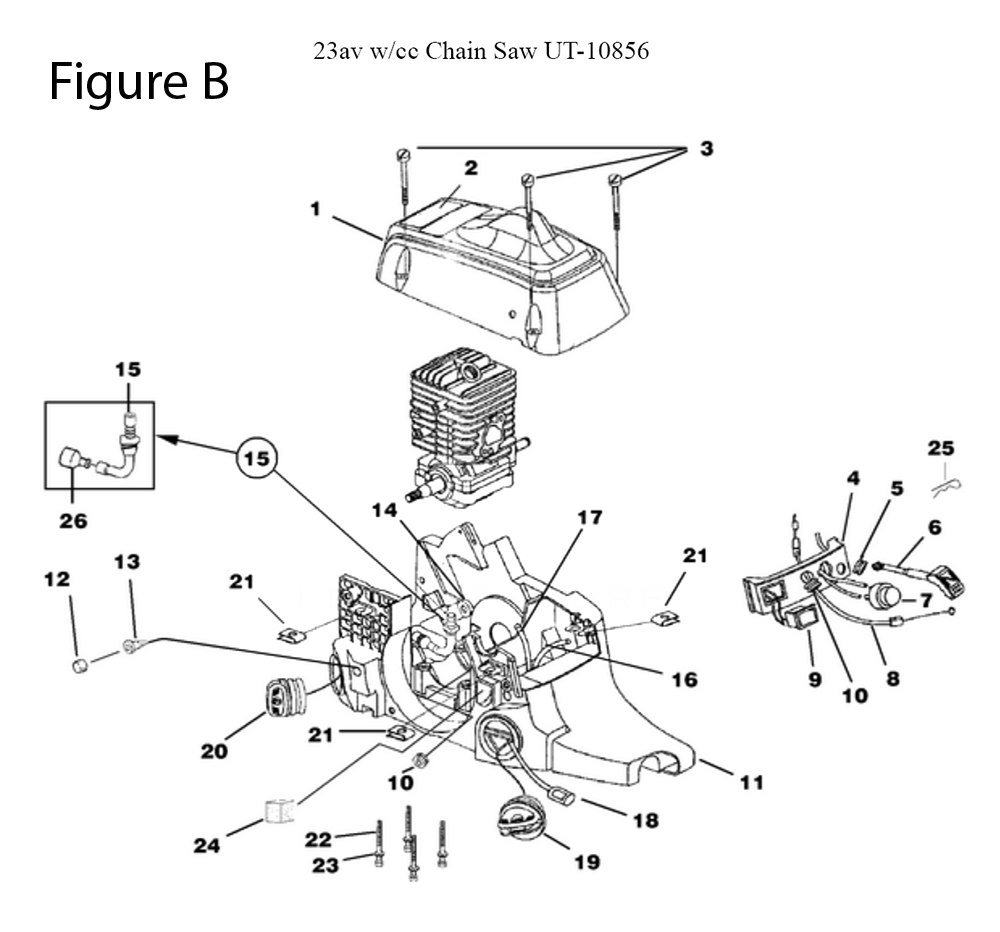

-299692-PBBreak Down

Fig-2

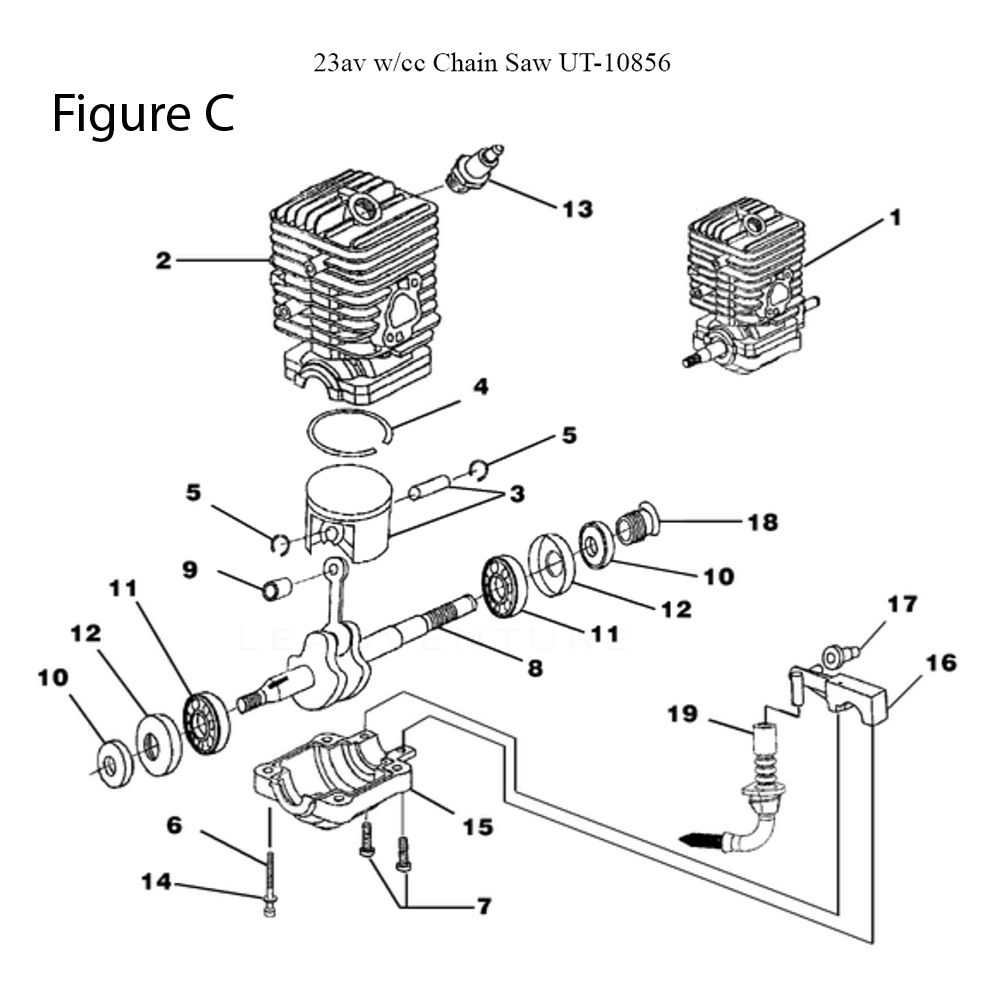

-299693-PBBreak Down

Fig-3

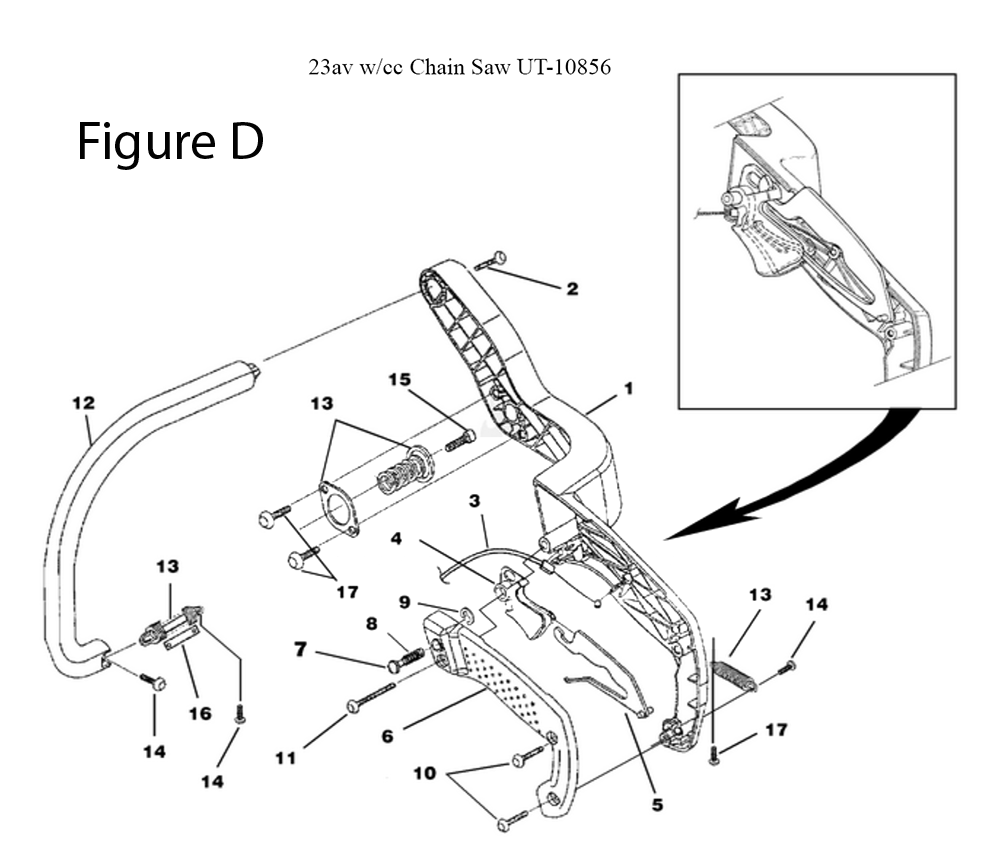

-299694-PBBreak Down

Fig-4

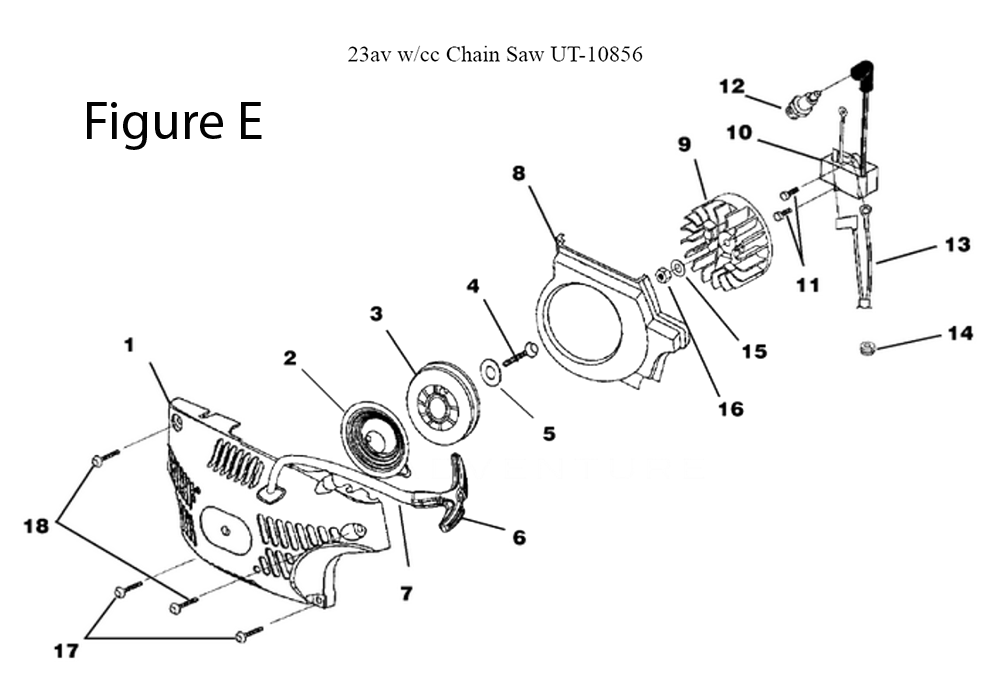

-299695-PBBreak Down

Fig-5

Reference Filter: Filter parts list by name or model number:

You might be interested in popular Hand Tool categories:

Homelite 23AV-(UT-10856) Replacement Parts List

00

Grease-multi Purpose Part # 18453 Currently not available

N/A
00

Oil Sensor Part # UP04069 Currently not available

N/A
00

Silastic (crankcase Sealing) Part # PS24823 Currently not available

N/A
00

Electronic Tachometer Part # 18416 Currently not available

N/A
00

Compression Tester Part # 94194 Currently not available

N/A
00

Chain (.325 Pitch) Part # D1L7264AH Currently not available

N/A
00

Guide Bar (power Tip) 12" (3/8" Pitch) Part # PT12371MD Currently not available

N/A
00

Chain 14" (3/8") Part # H1N7252AH Currently not available

N/A
00

Rubber Tubing (10') Part # UP06561 Currently not available

N/A
00

Guide Bar (power Tip) 20" (.325 Pitch) Part # PT20321MA Currently not available

N/A
00

Carburetor Assy Part # A09160 Currently not available

N/A
00

Chain (.325 Pitch) Part # D1L7366AH Currently not available

N/A
00

Chain 12" (3/8" Pitch) Part # H1N7245AH Currently not available

N/A
00

Air Filter Kit Part # UP06753 Currently not available

N/A
00

Muffler Kit Part # UP00126 Currently not available

N/A
00

Guide Bar (power Tip)) 18" (3/8") Part # PT18371MD Currently not available

N/A
00

Chain Or D1L7356AH (.325 Pitch) Part # D1L7256AH Currently not available

N/A
00

Guide Bar (power Tip) 20" (.325 Pitch) Part # D1L7378AH Currently not available

N/A
00

Guide Bar (power Tip) 16" (.325 Pitch) Part # D1L7266AH Currently not available

N/A
00

Guide Bar (power Tip) 16" (.325 Pitch) Part # PT16321MA Currently not available

N/A
00

Guide Bar (power Tip) 13" (.325 Pitch) Part # PL13321MA Currently not available

N/A
00

Guide Bar (power Tip) 18" (.325 Pitch) Part # PT18321MA Currently not available

N/A
00

Guide Bar (power Tip)) 16" (3/8") Part # PT16371MD Currently not available

N/A
00

Carburetor Assy Part # UP00125 Currently not available

N/A
00

Carry Case Part # UP04562 Currently not available

N/A
